About...

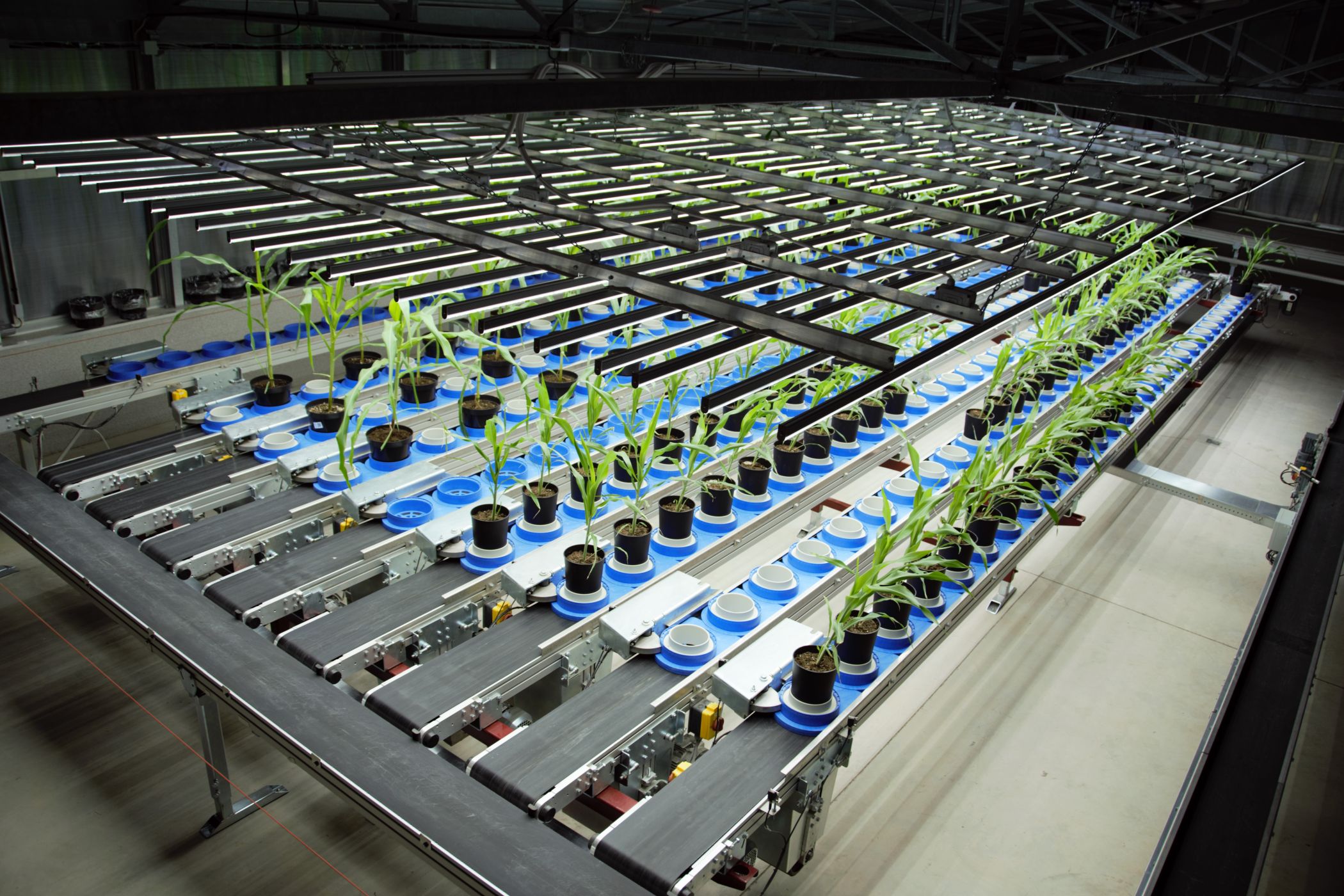

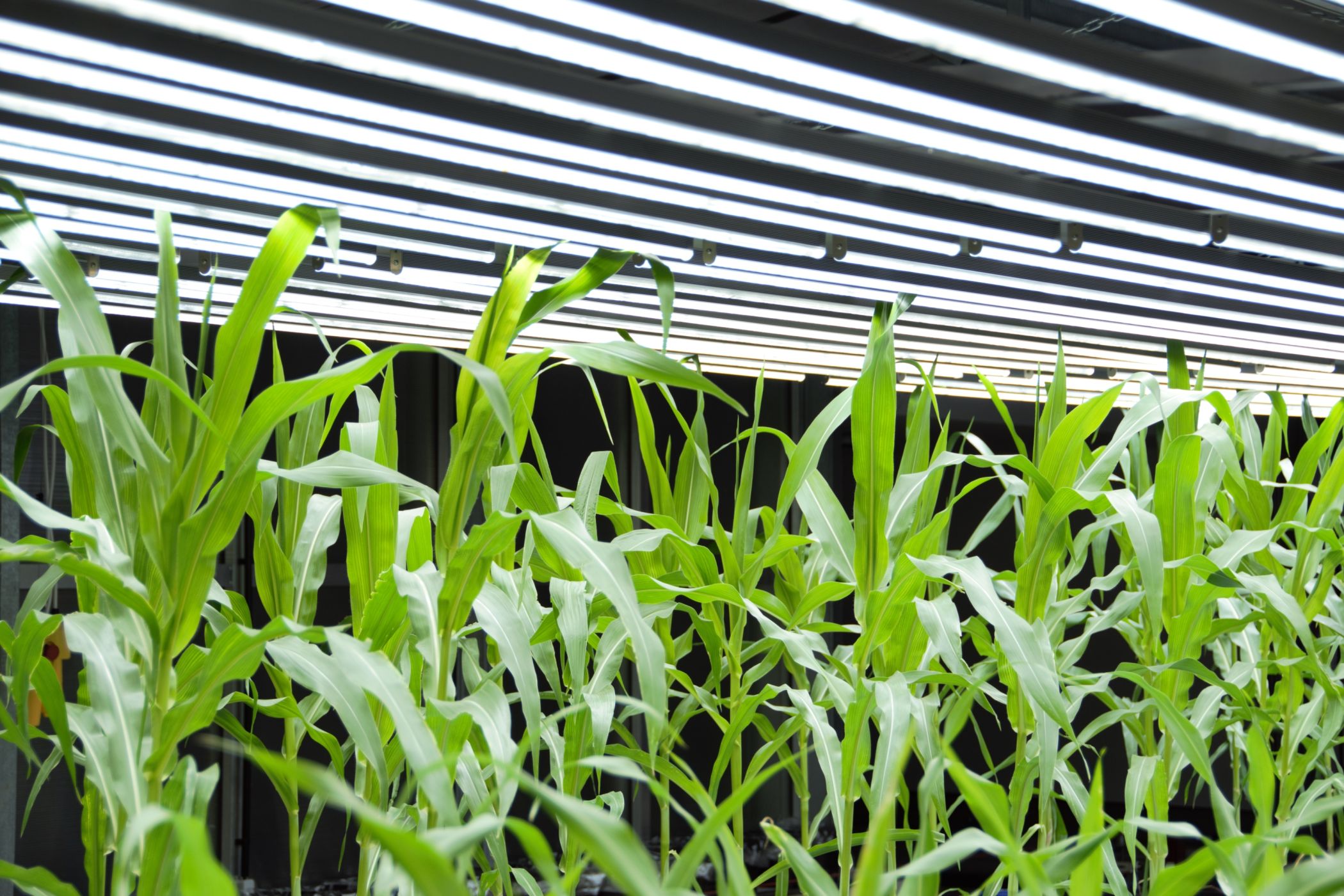

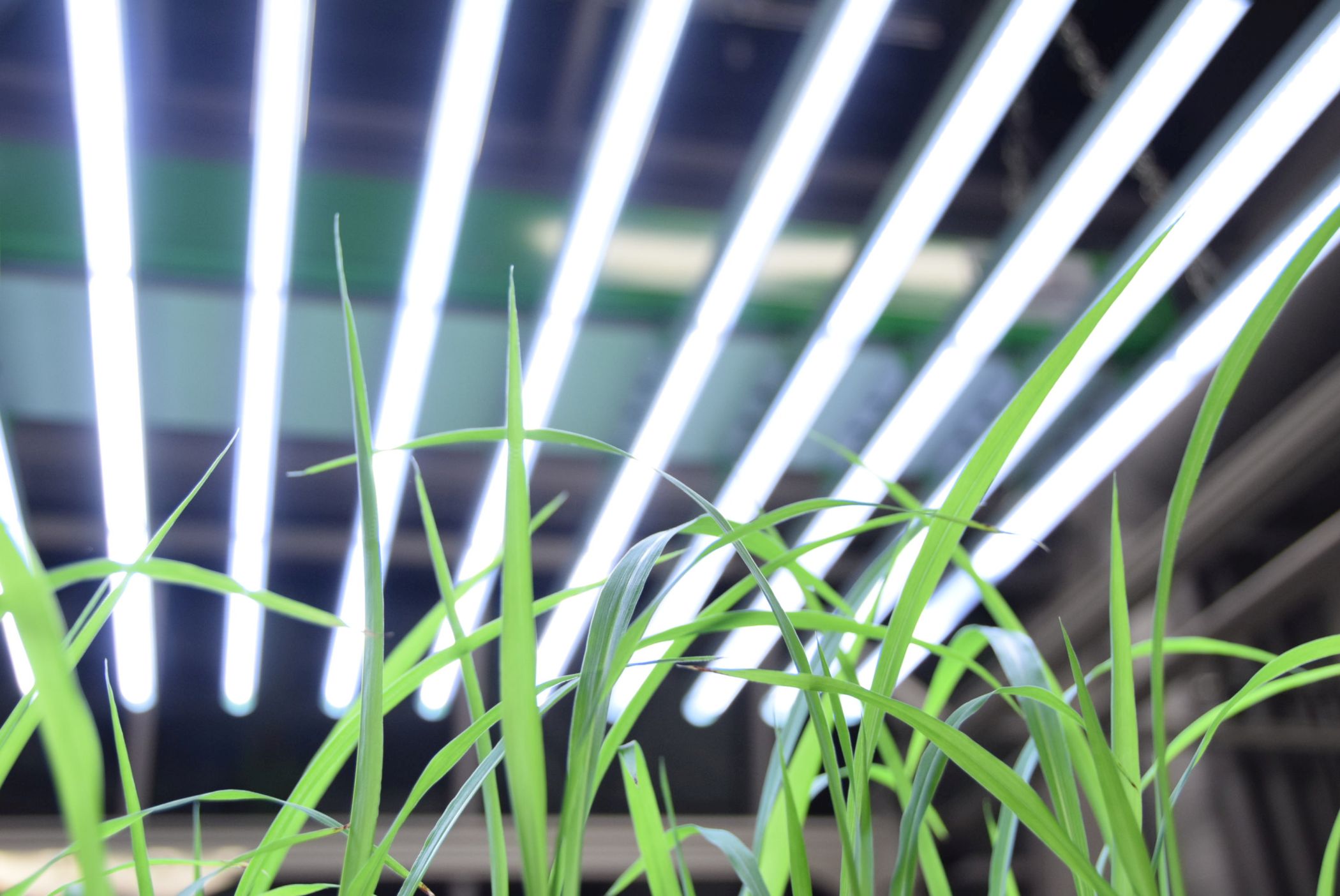

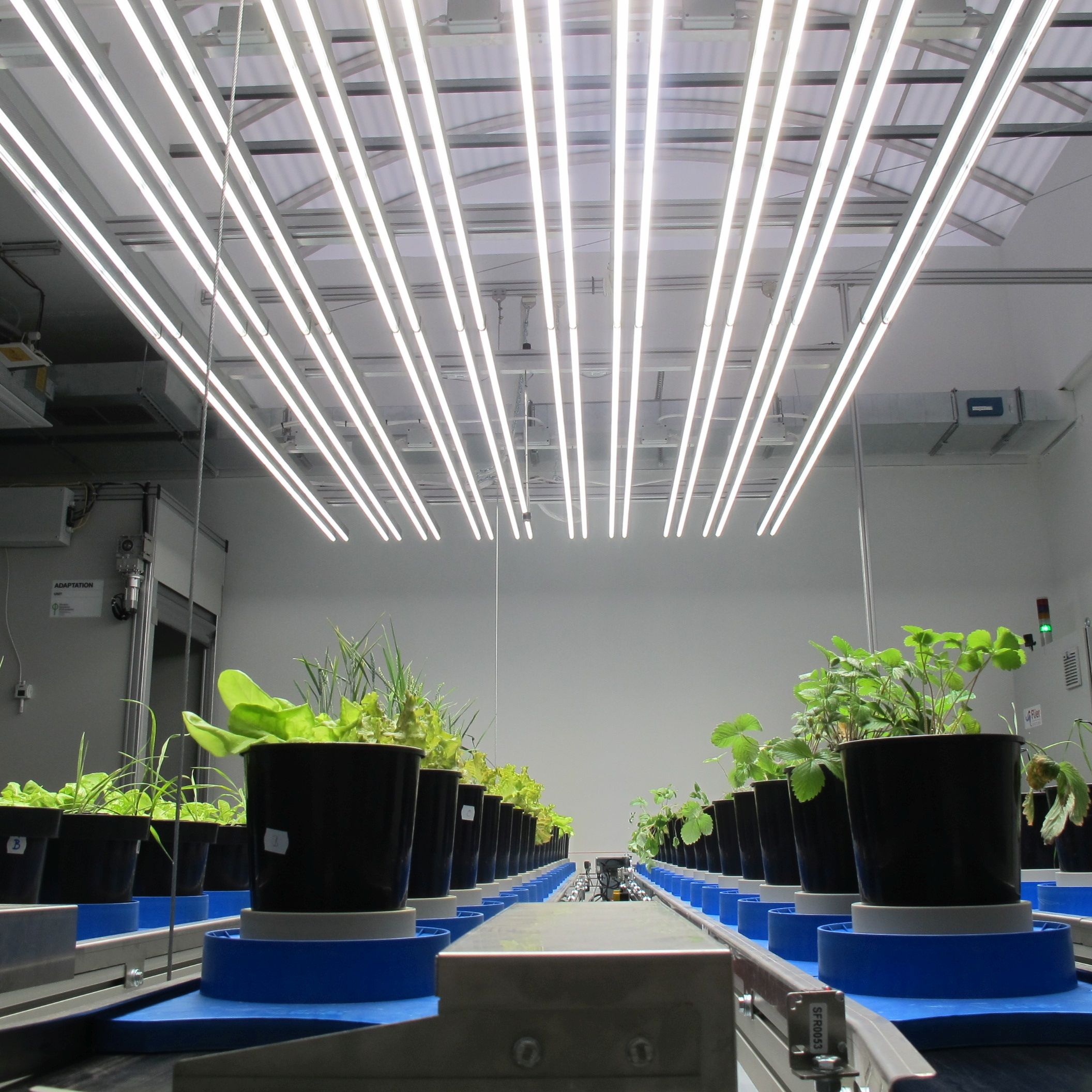

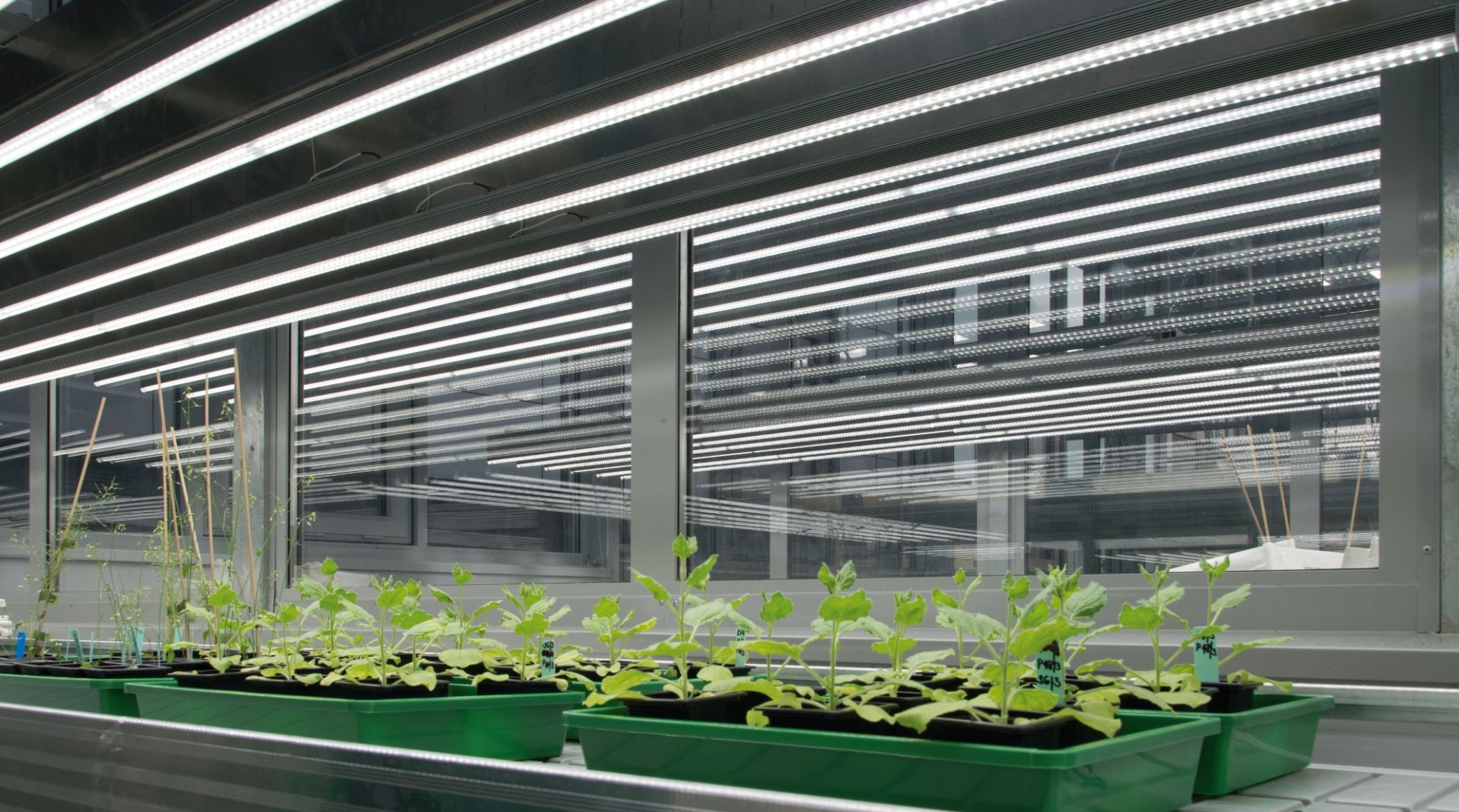

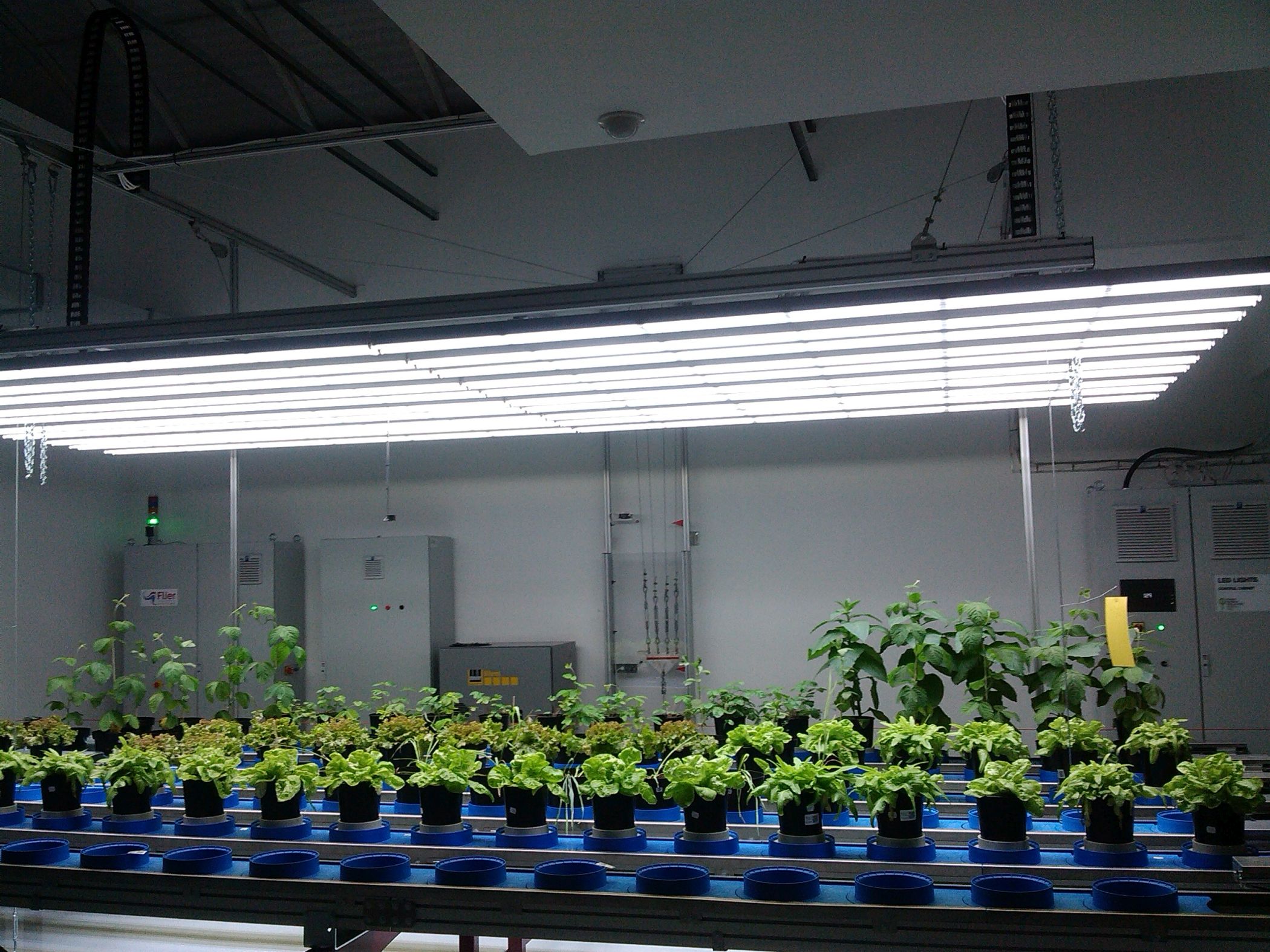

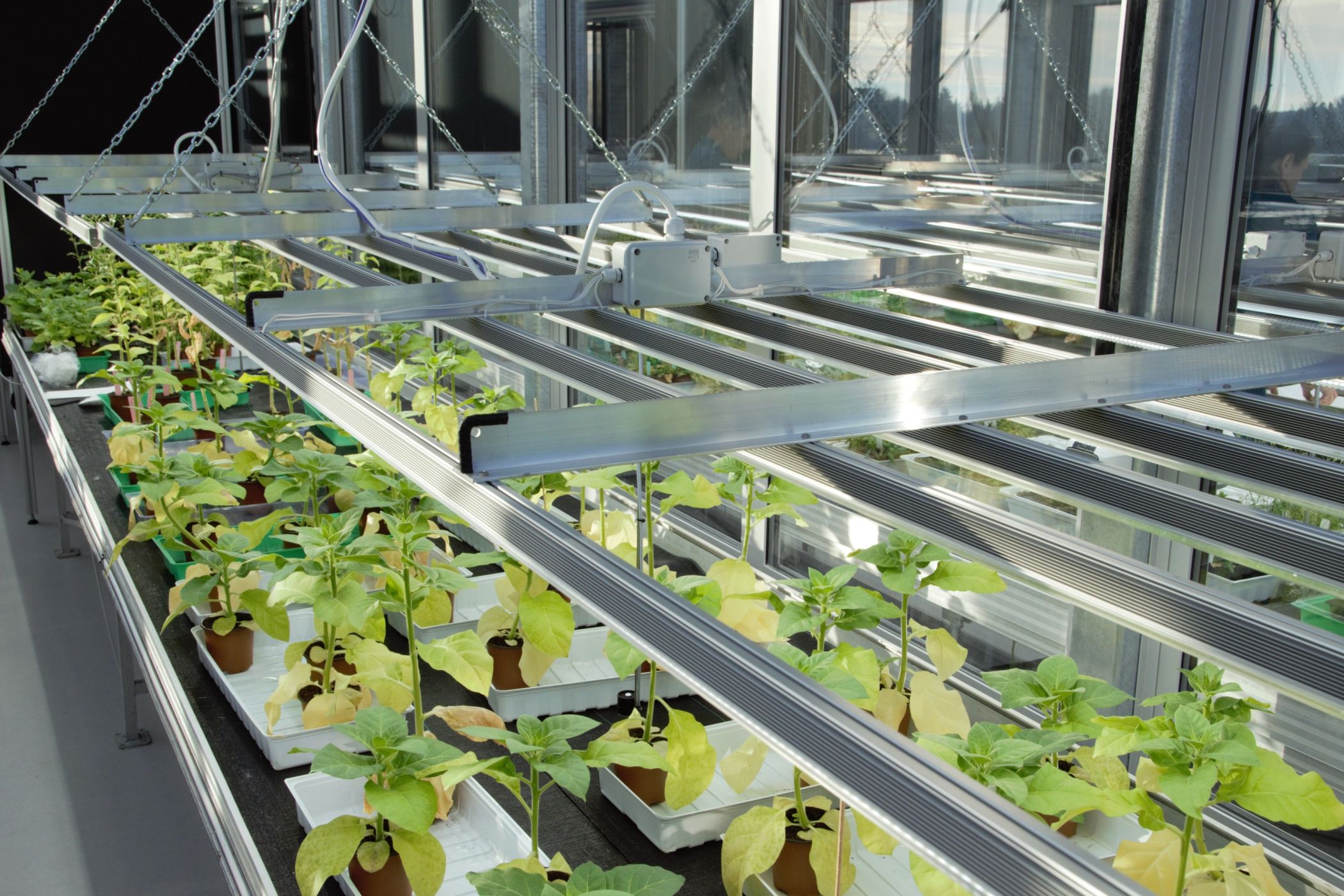

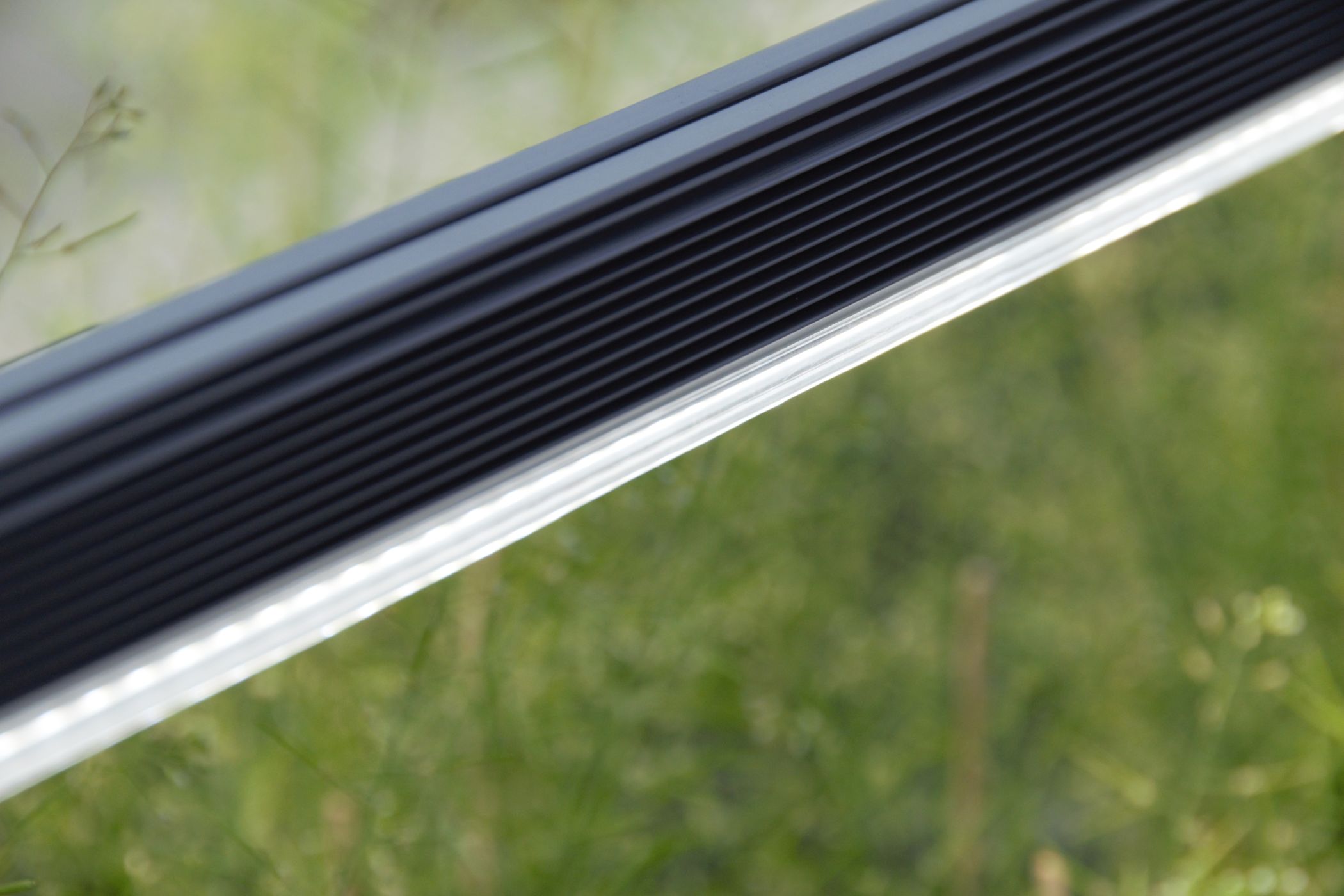

Custom LED Bars Systems are high-efficiency tunable lighting systems intended for plant growing in controlled conditions. These highly modular systems have flexible geometry; light intensity can be precisely regulated in the range of 1 to 100 % of the total output.

Custom LED Bars Systems may be assembled in multiple LED Bars modules. These modules can be arranged and suspended according to the customer’s request and disposition. Each LED Bars module can be controlled independently from one steering station. Besides that, single LED Bars module can also be grouped and controlled in groups.

Key Features

High-performance LED light sources, 5,700 K cool white
Customized modular system allowing flexible geometry of lighting
Advanced control system
High irradiance level – PPFD up to 2,000 µmol.m^-2.s^-1

Adjustable LED Bars height
Integrated sensors (irradiance level, temperature) - optional
Multi-wavelength LEDs (far-red, blue, red …) - optional

Custom LED Bars Systems

PSI’s Custom LED Bars are high-efficiency tunable systems intended for supporting plant growth in controlled environments, with light intensity that can be precisely regulated from 1 to 100 % of total output.

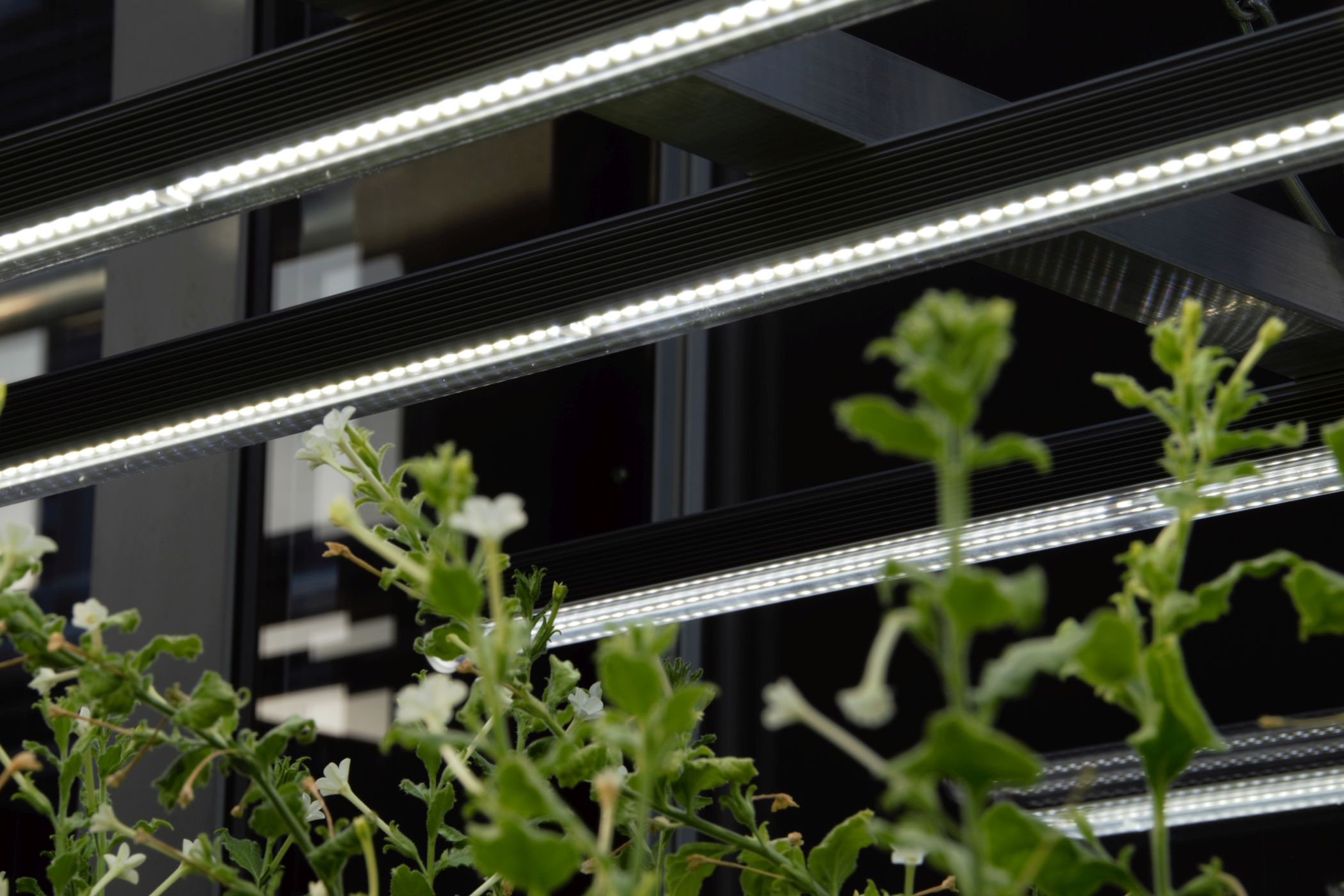

Custom LED Bars are modular systems with a flexible geometry. The modules may be arranged and suspended according to the client’s specific requirements. Each module may be regulated independently from one control station. Single modules may also be grouped and controlled as a unit.

Applications

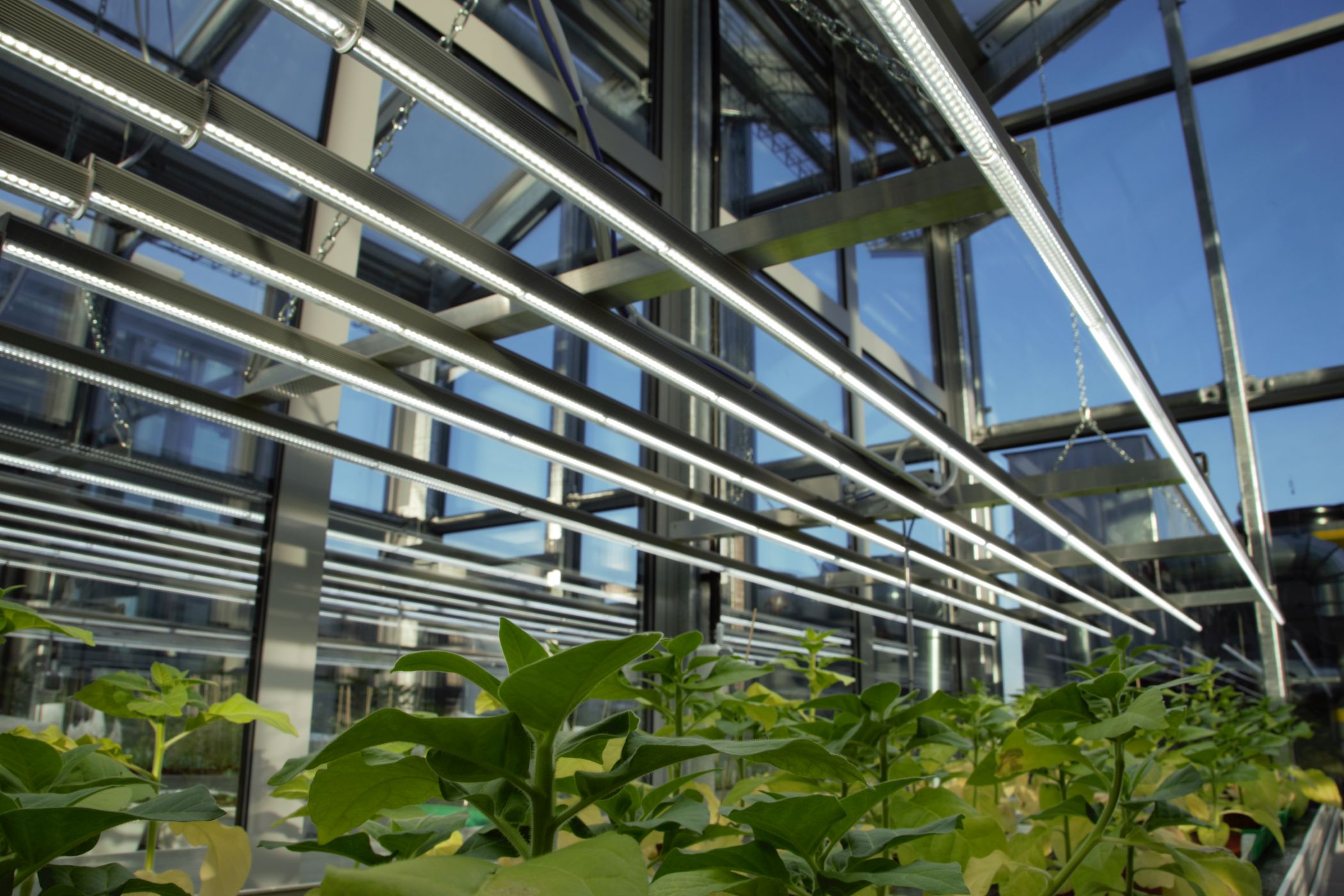

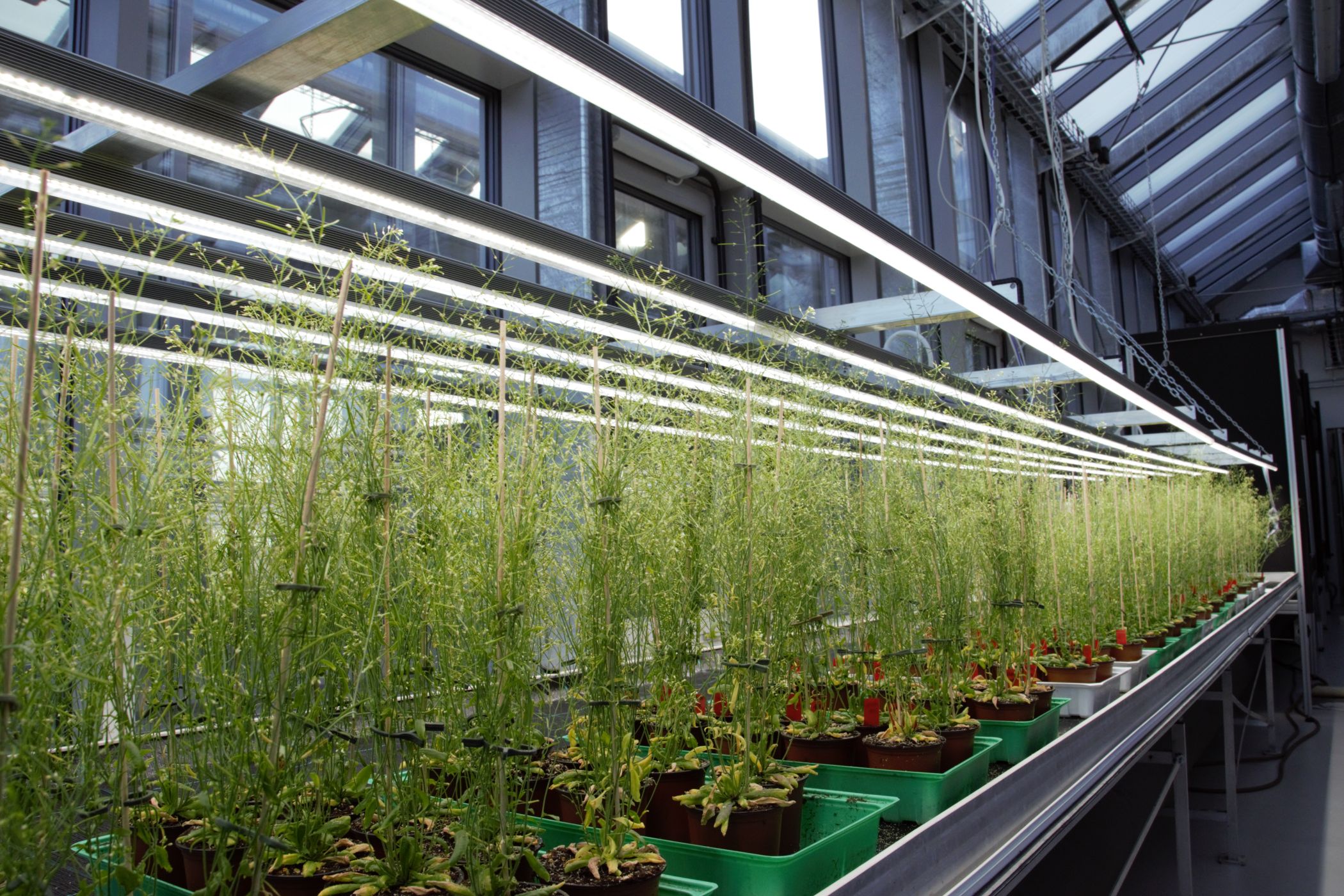

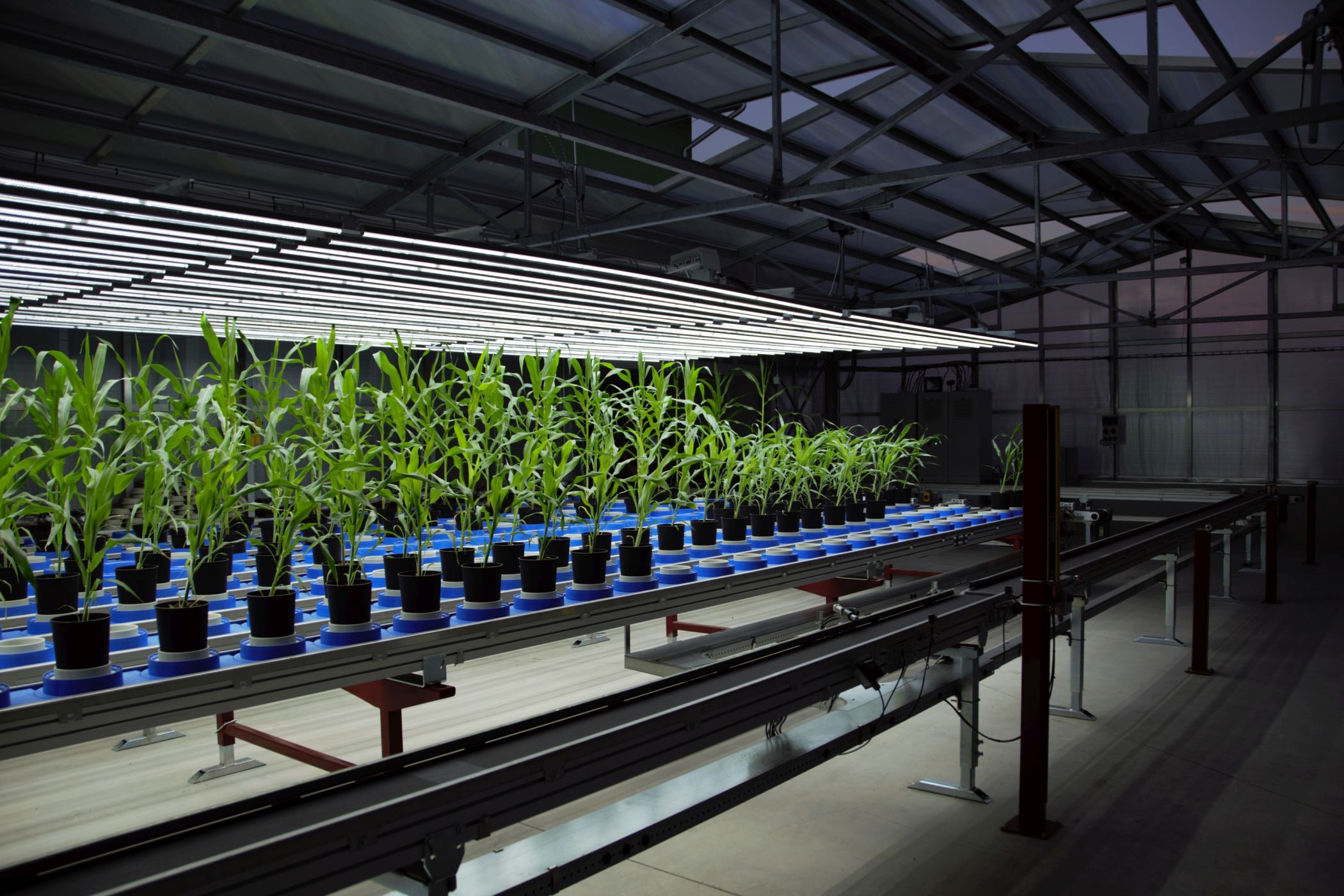

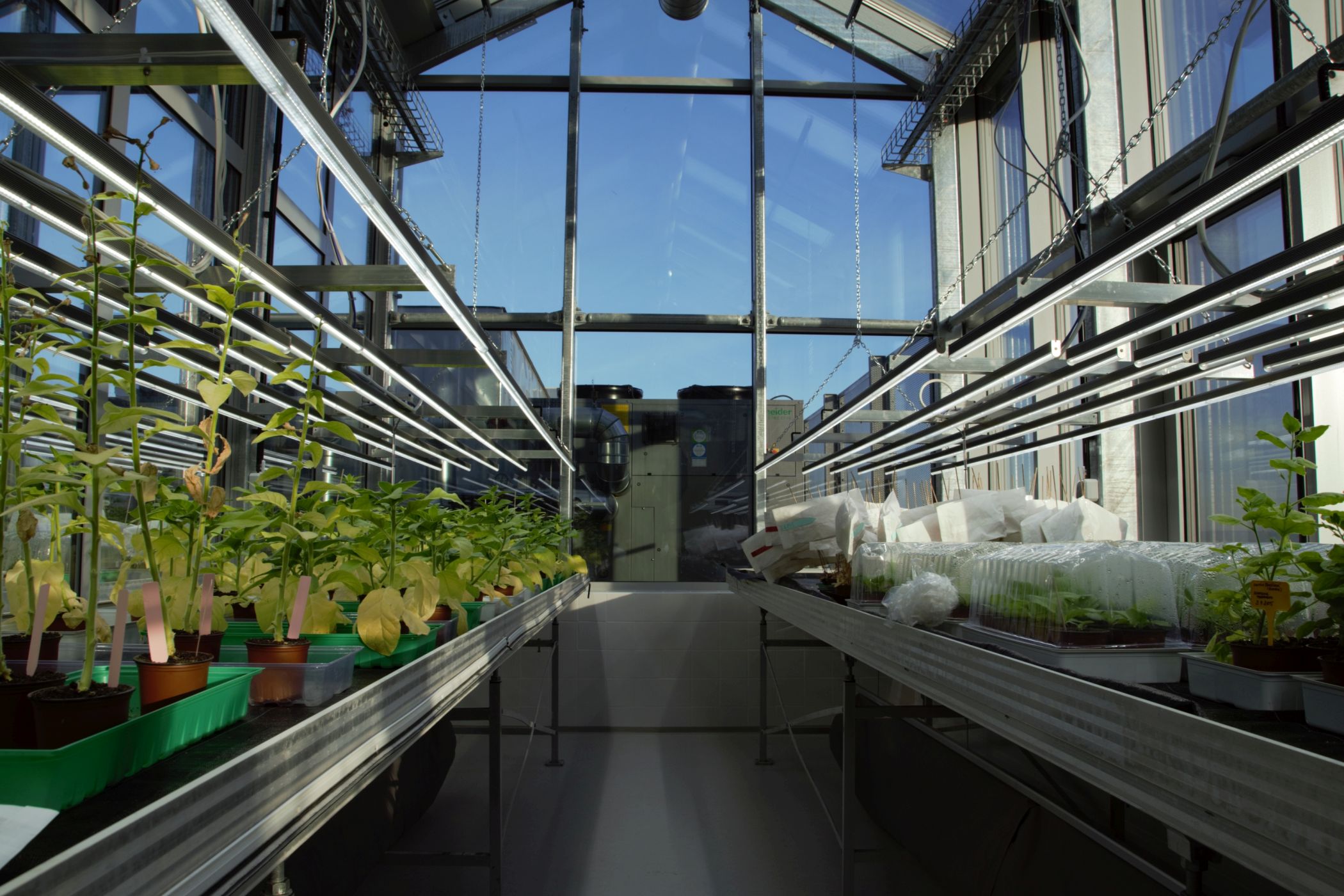

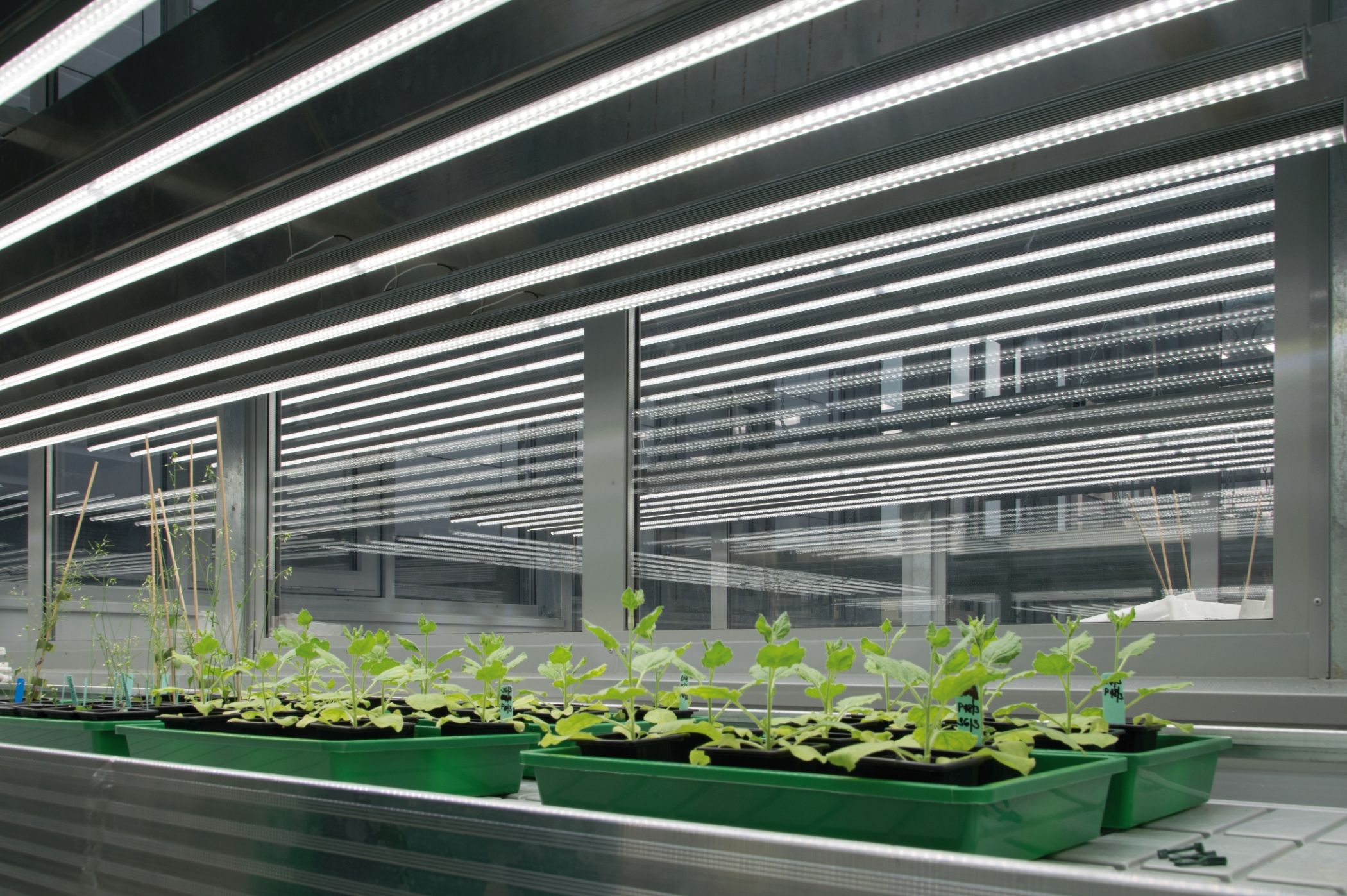

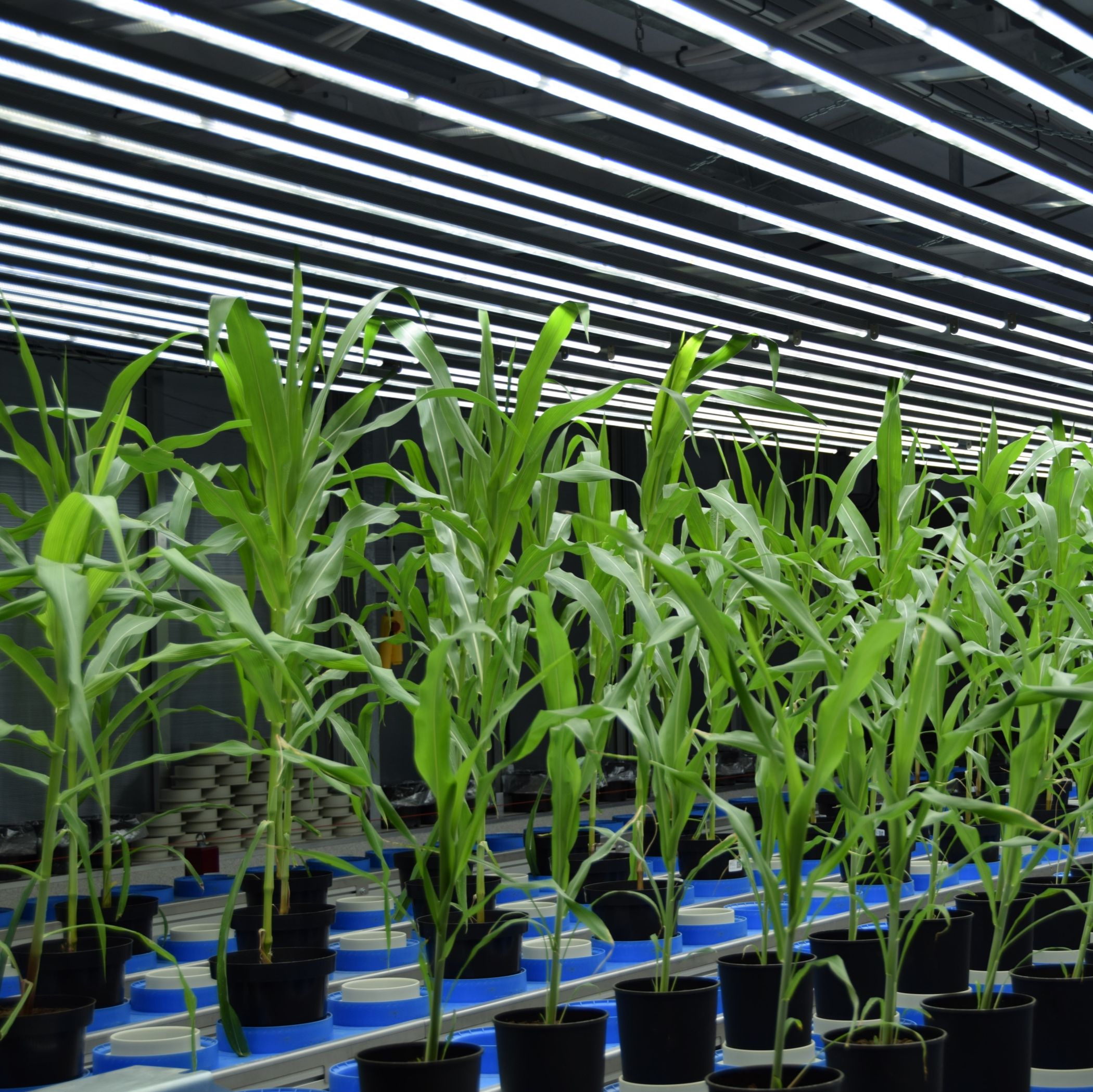

Greenhouses
Custom Research Facilities
Indoor Cultivation
Growth Chambers

Key Features

High-performance 5,700 K cool white LED light sources.
Customized modular system allowing flexible configurations
Advanced control system
High irradiance level – PPFD up to 2,000 µmol.m^-2.s^-1
Adjustable height
Integrated sensors for irradiance level and temperature (optional)
Multi-wavelength LEDs (far-red, blue, red etc) as options

Specifications - Custom LED Bars Systems

Power consumption: depending on LED Bars system dimension and requested light intensity
PPFD: up to 2.000 µmol.m^-2.s^-1

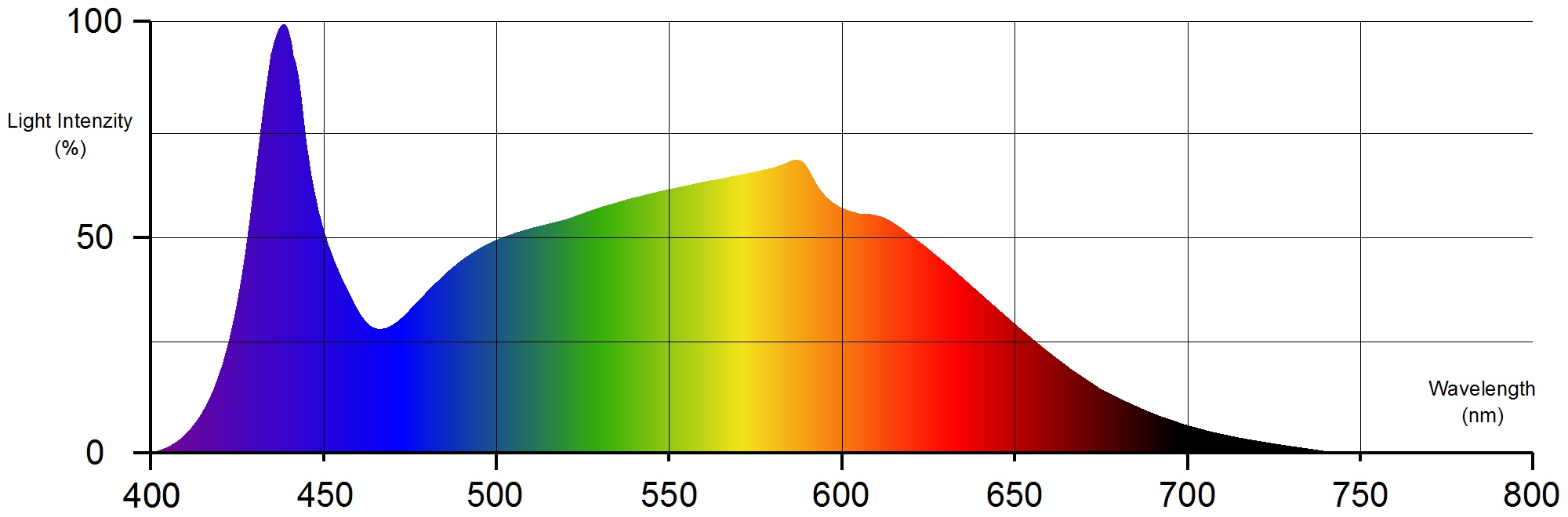

Light source: LED 5,700 K cool white, 50,000 hours life to L70
Dimmable (Current control): 1 – 100 %
Adjustable panel height
Cooling: passive (LED Bars), active (Control Cabinet)
Dimensions: Customized formats
Operating temperature: from - 20 to +40°C (environment)
Integrated sensors (irradiance level, temperature) - optional
Multi-wavelength LEDs (far-red, blue, red …) - optional

Accessories

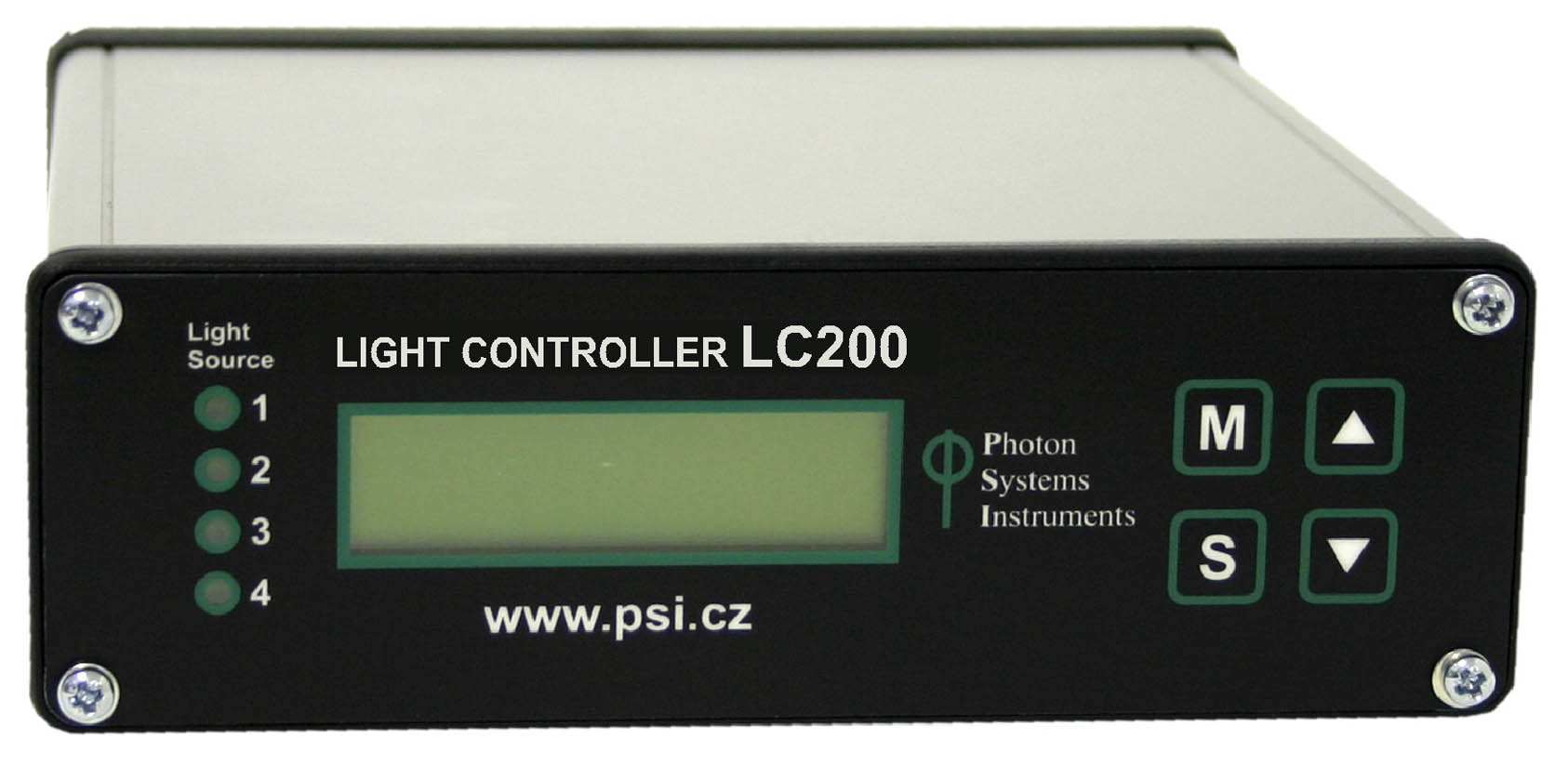

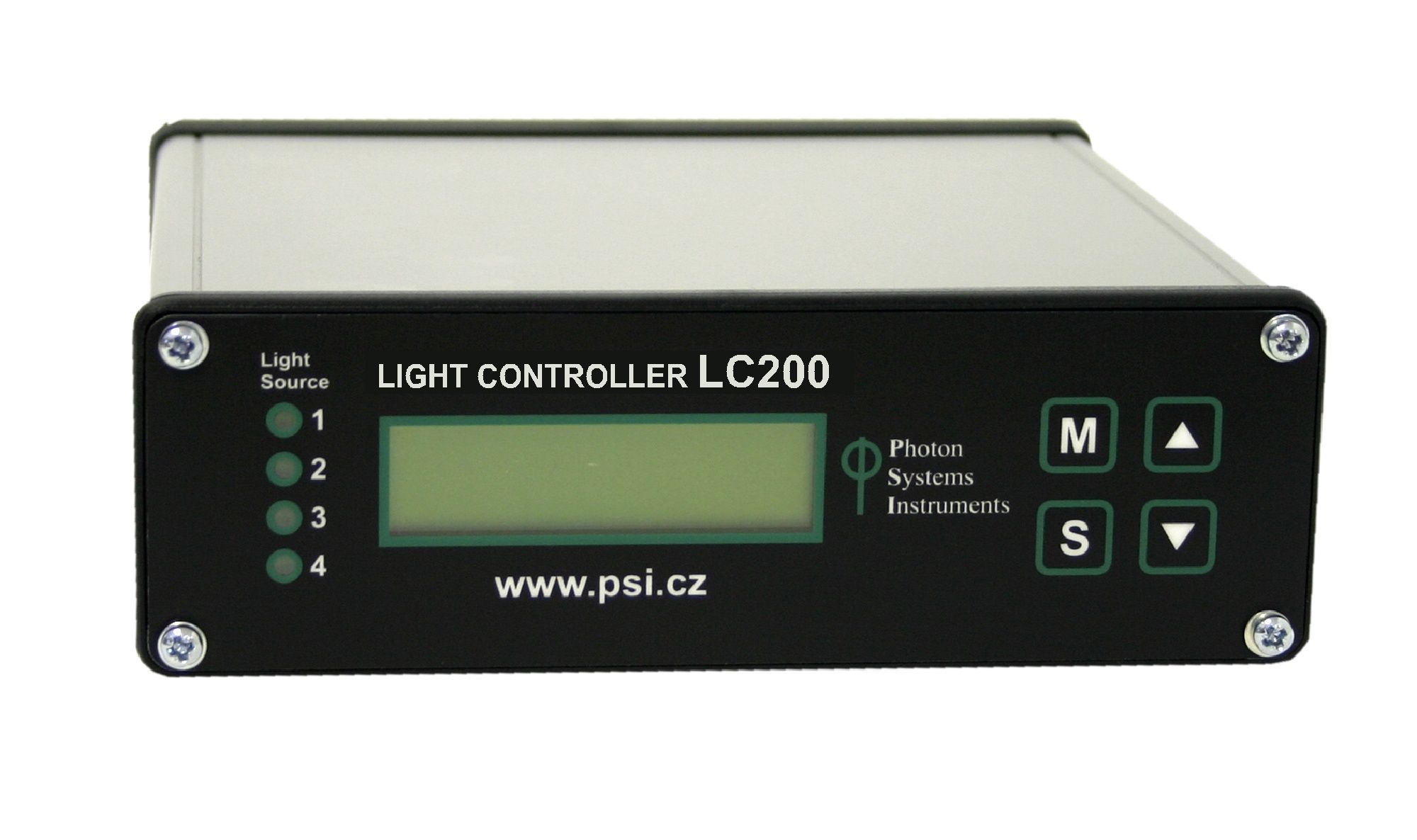

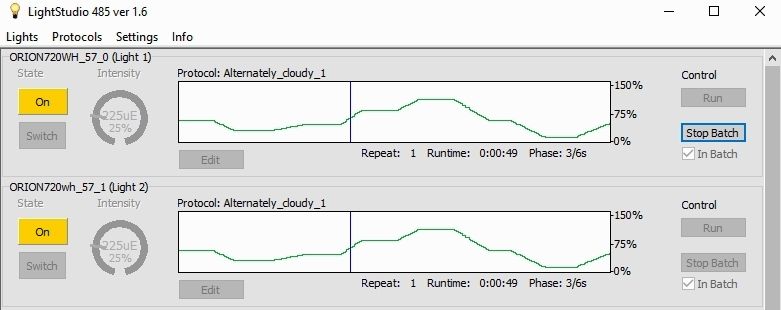

Light Controller LC 200 / Light Studio

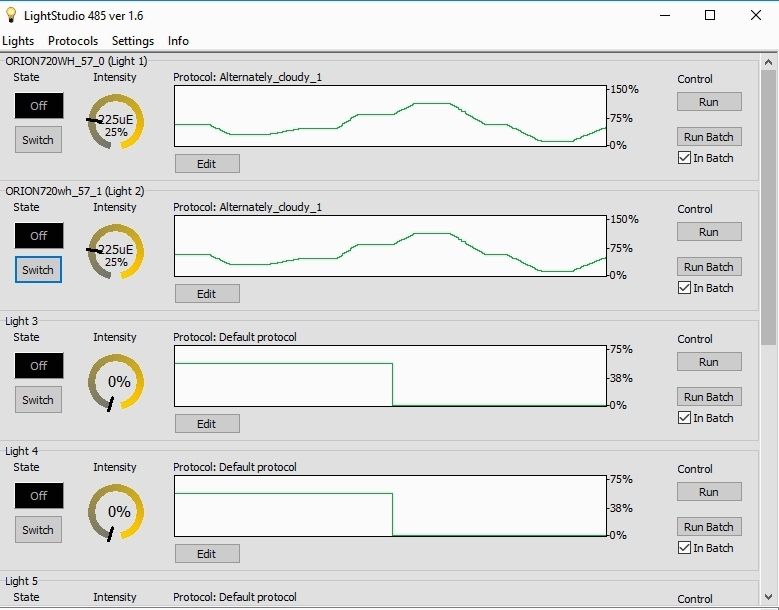

Small-extend Custom LED Bars Systems can also be controlled by the PSI Light Controller LC 200 or Light Studio software (Windows 7 or higher compatible). Both these control tools enable writing custom protocols with precisely defined light conditions.

LightManager

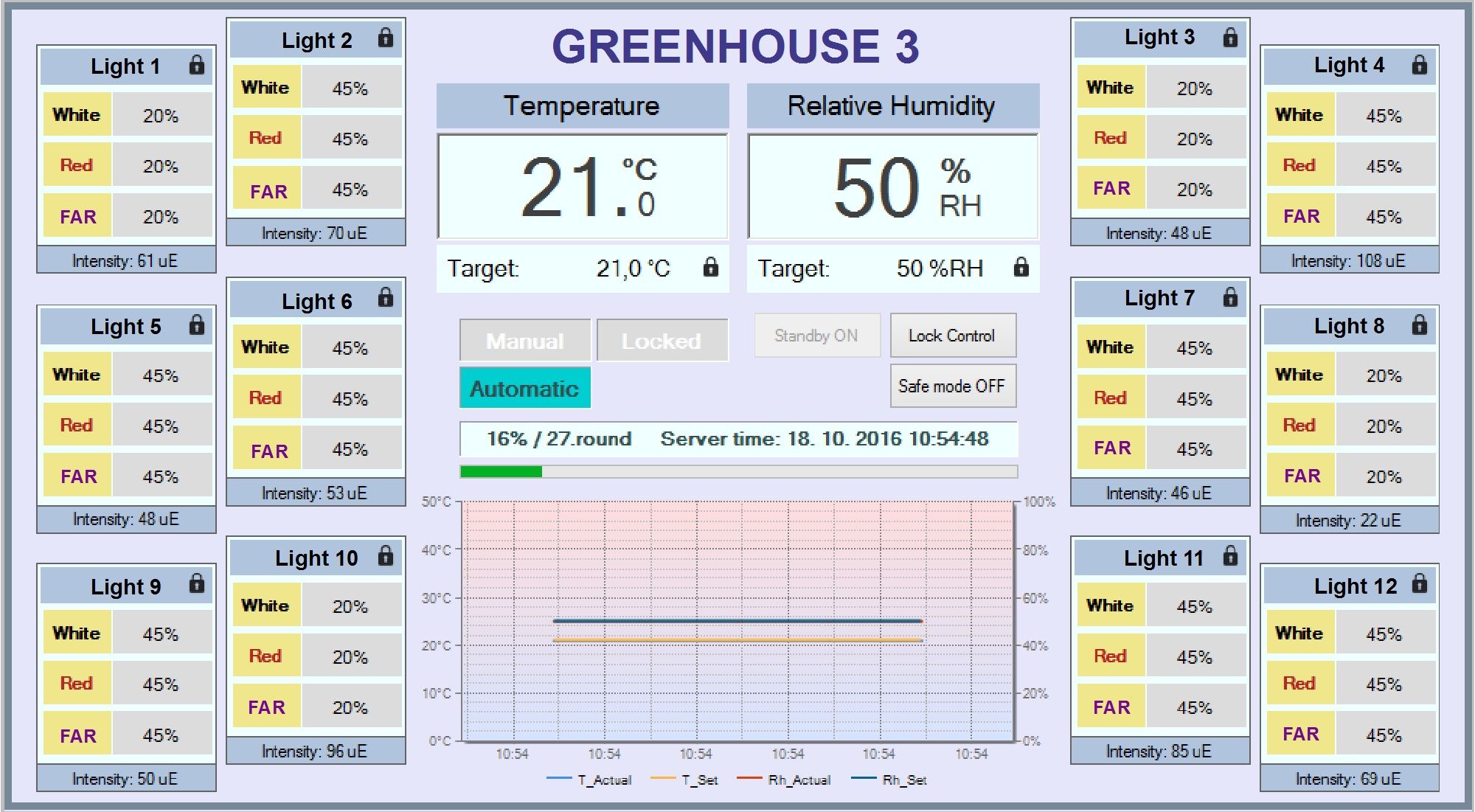

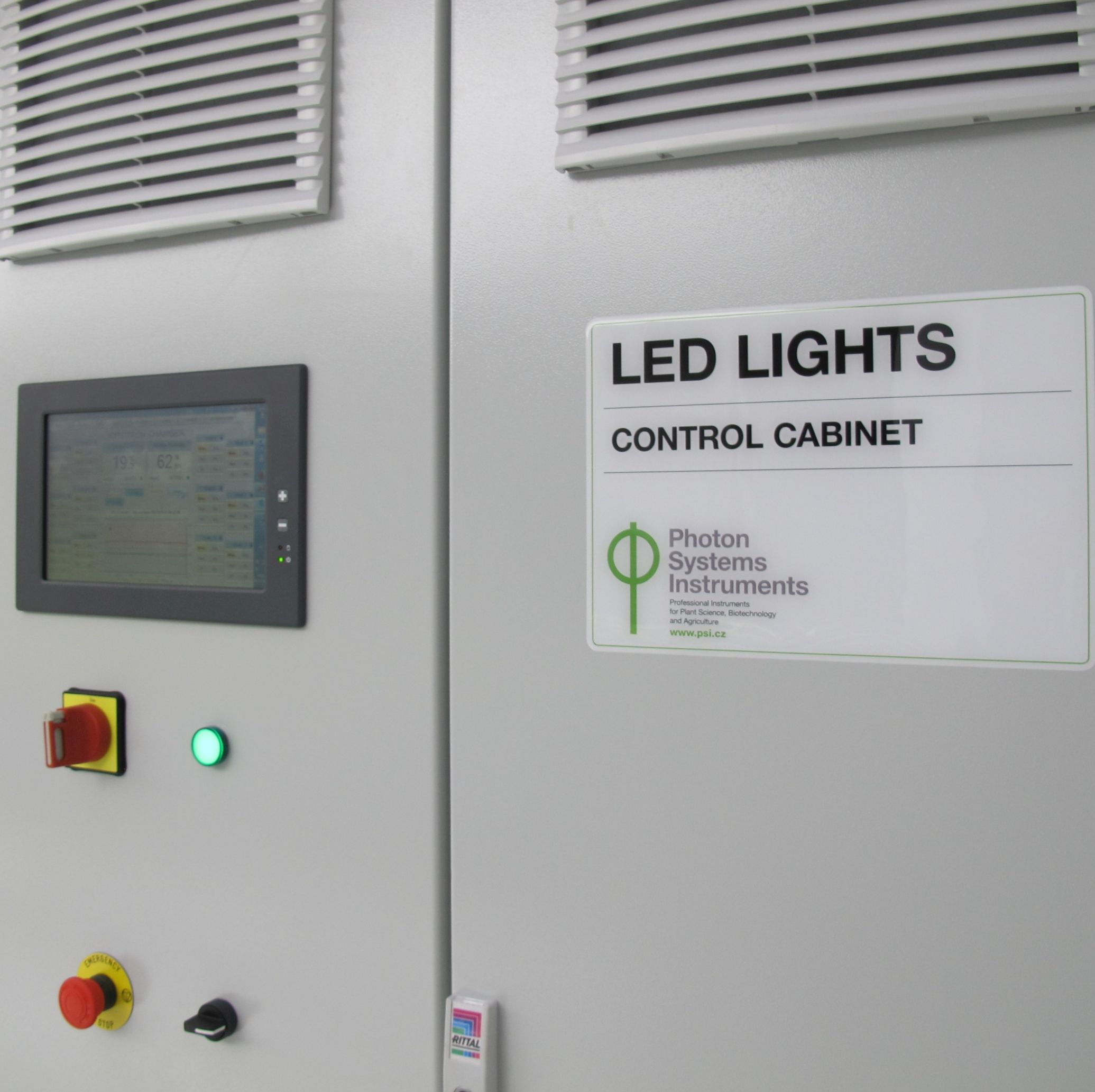

More complex Custom LED Bars Systems may be controlled by the industrial PC with sophisticated PSI software called LightManager software working in client/server regime. In such case, the PC is integrated in the Control cabinet that is equipped with a touchscreen operator panel. Optionally remote access may also be implemented (internet connectivity necessary).

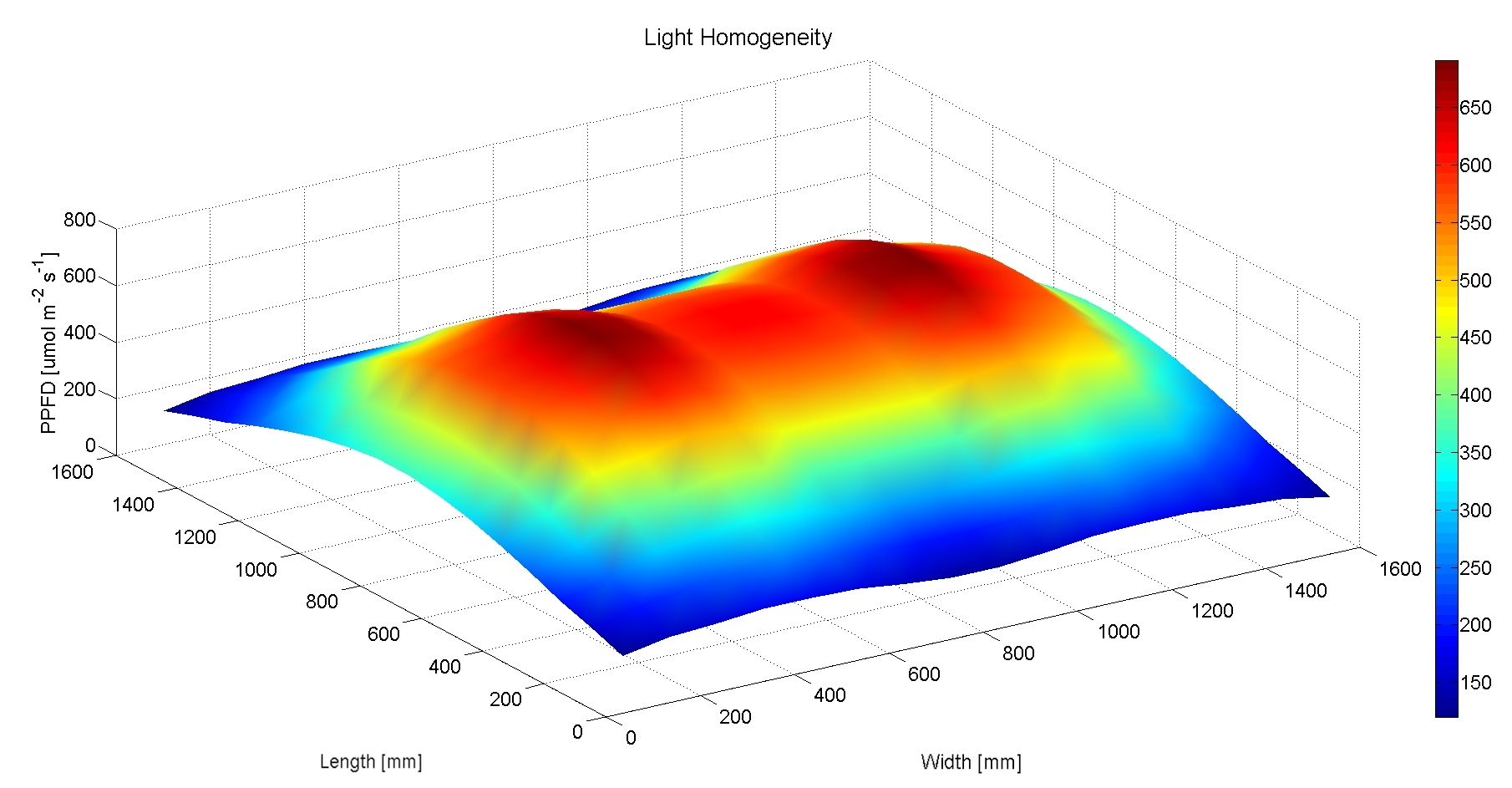

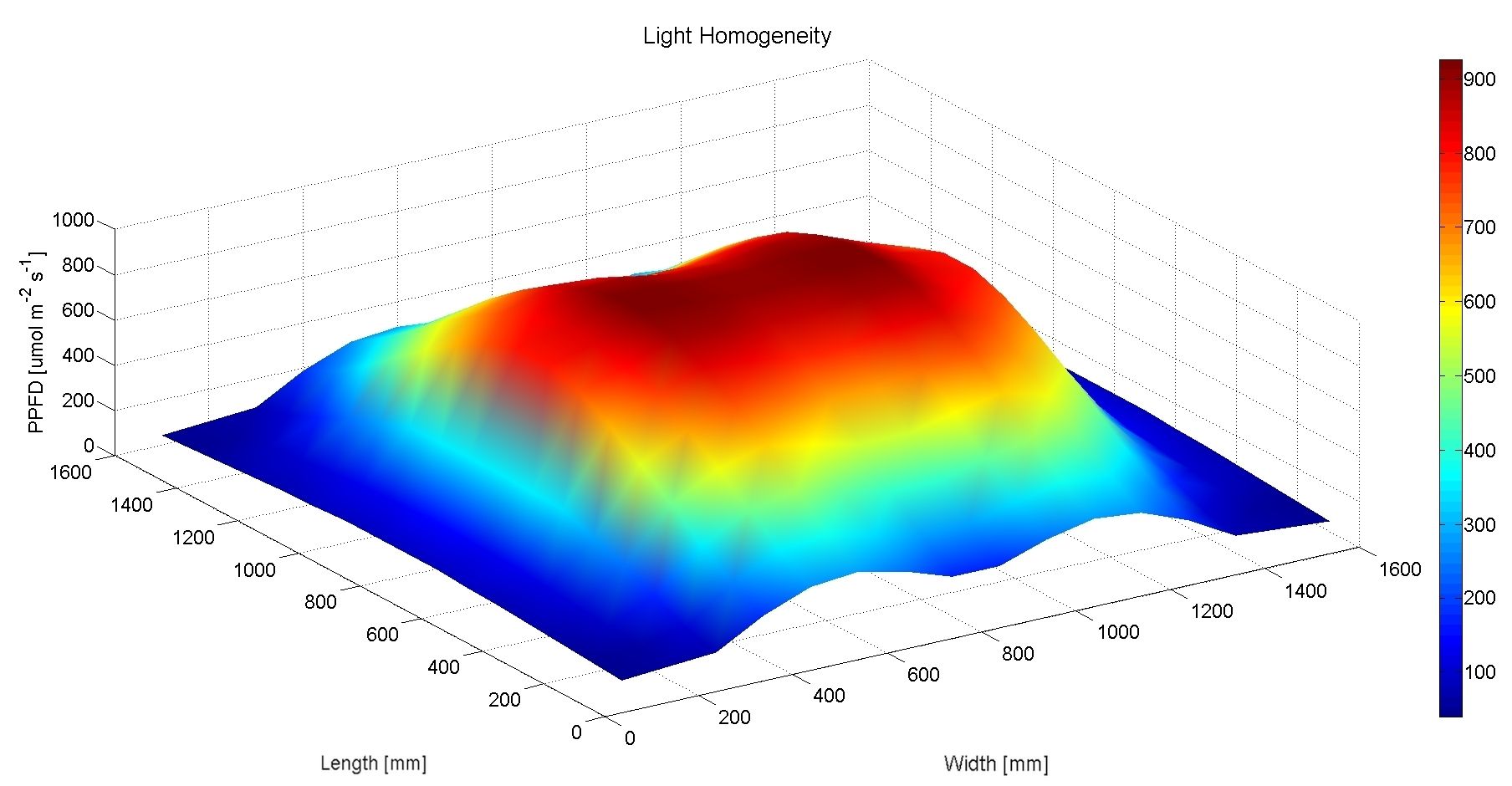

Custom LED Bars Systems are always designed so as to meet each customer’s specific requirements as for light intensity, homogeneity, spectrum, dimensions, extent of up-and-down move, etc.
