Compact LED Bars
LED lighting solutions for precise growth control
About...

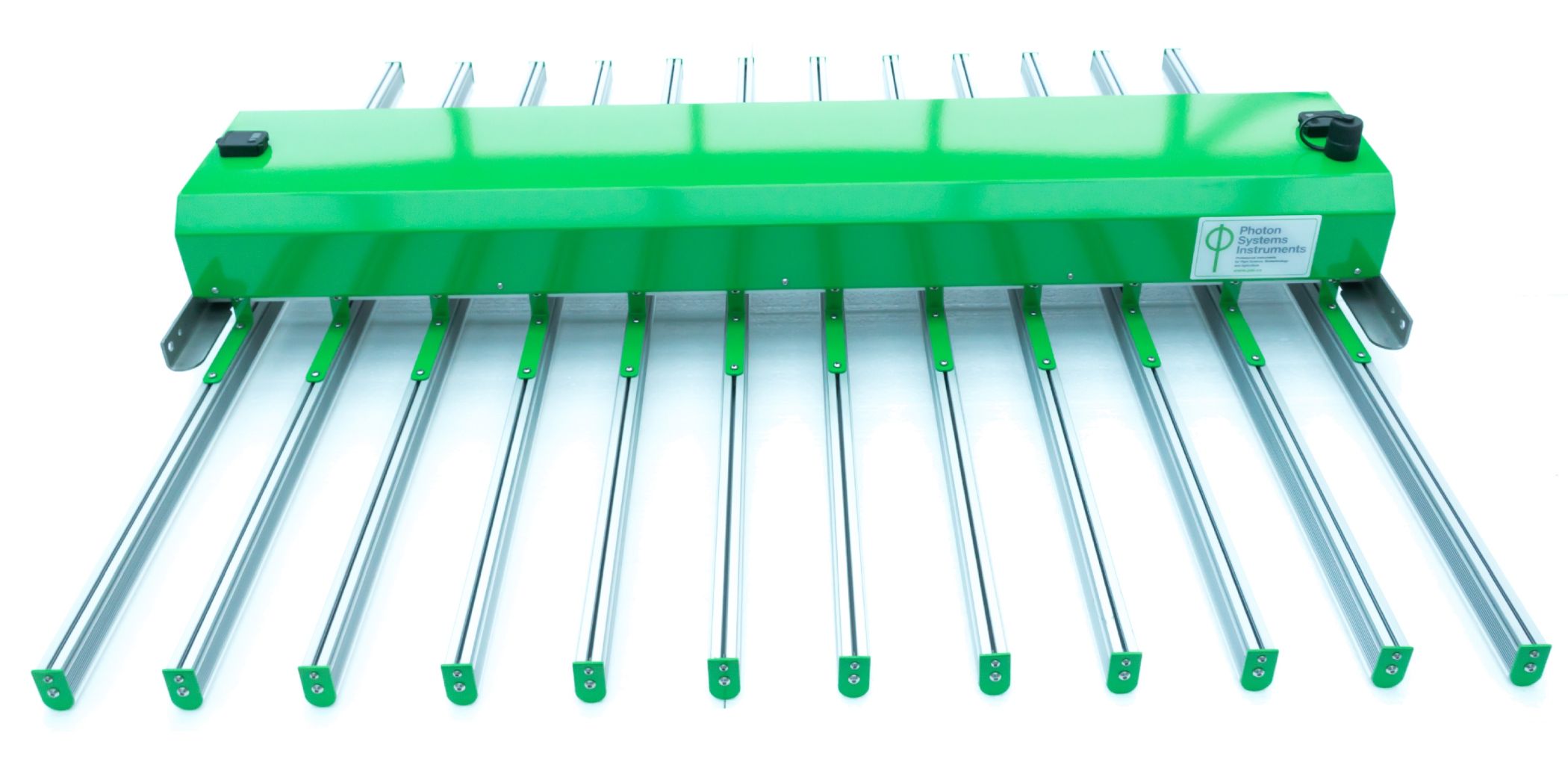

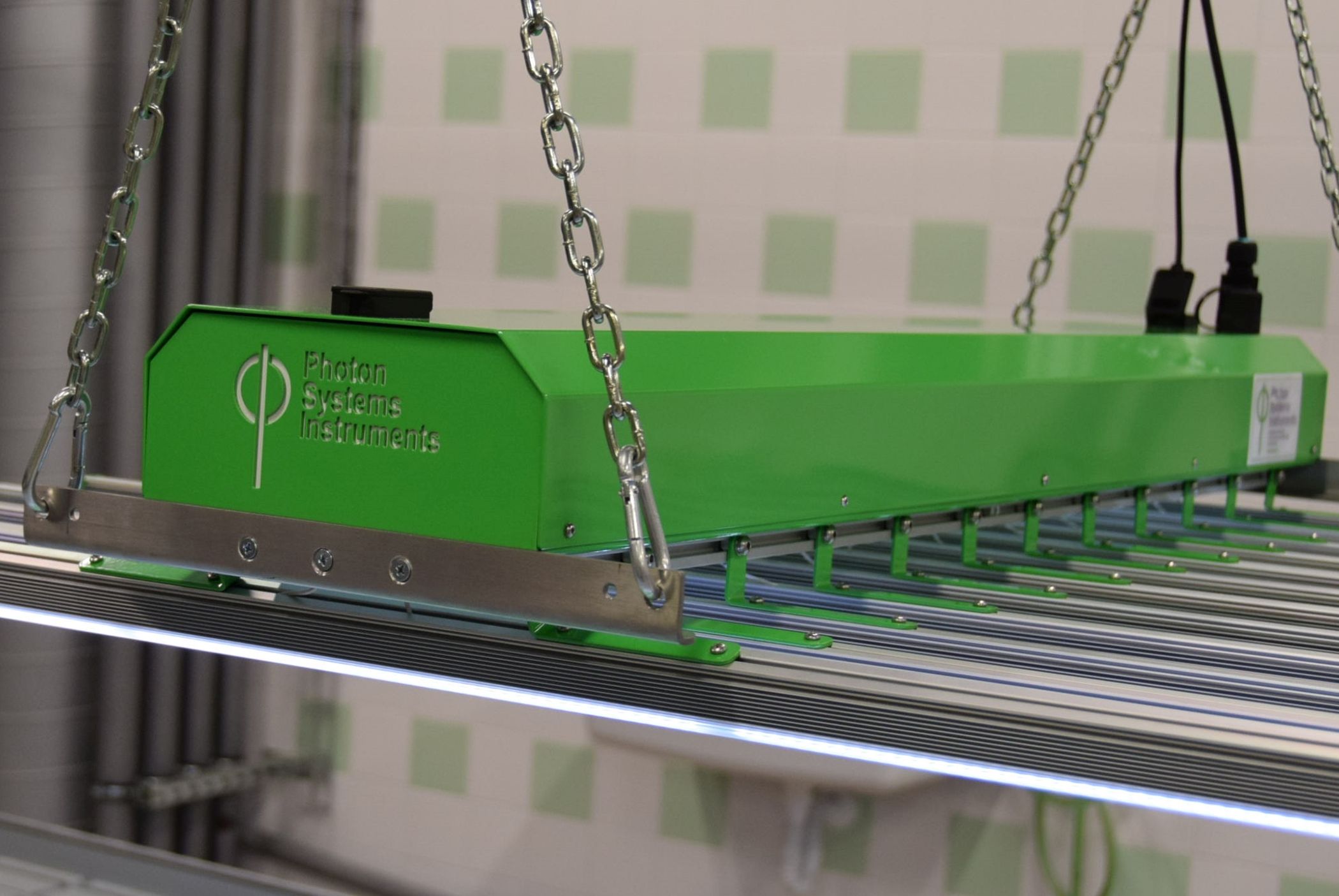

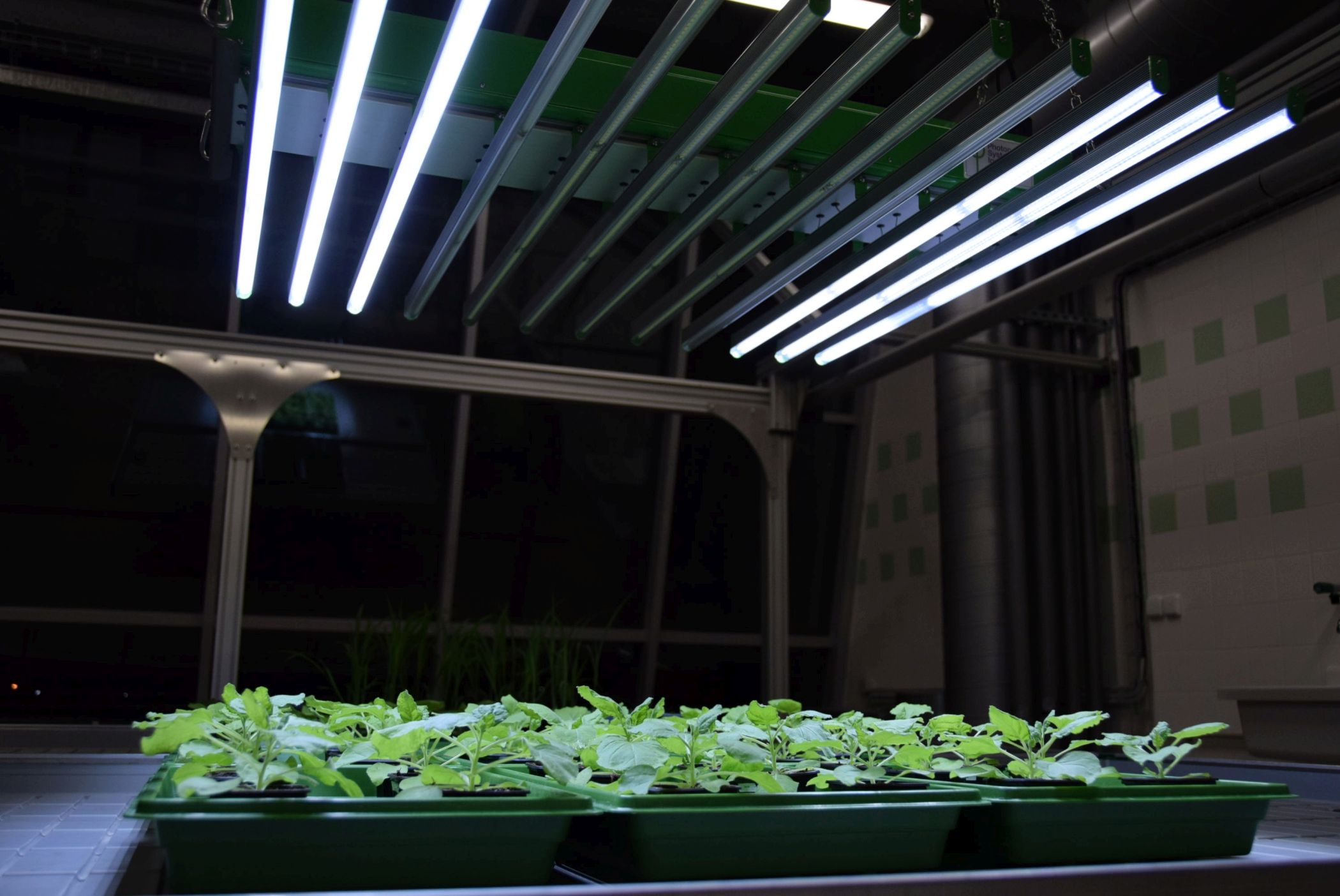

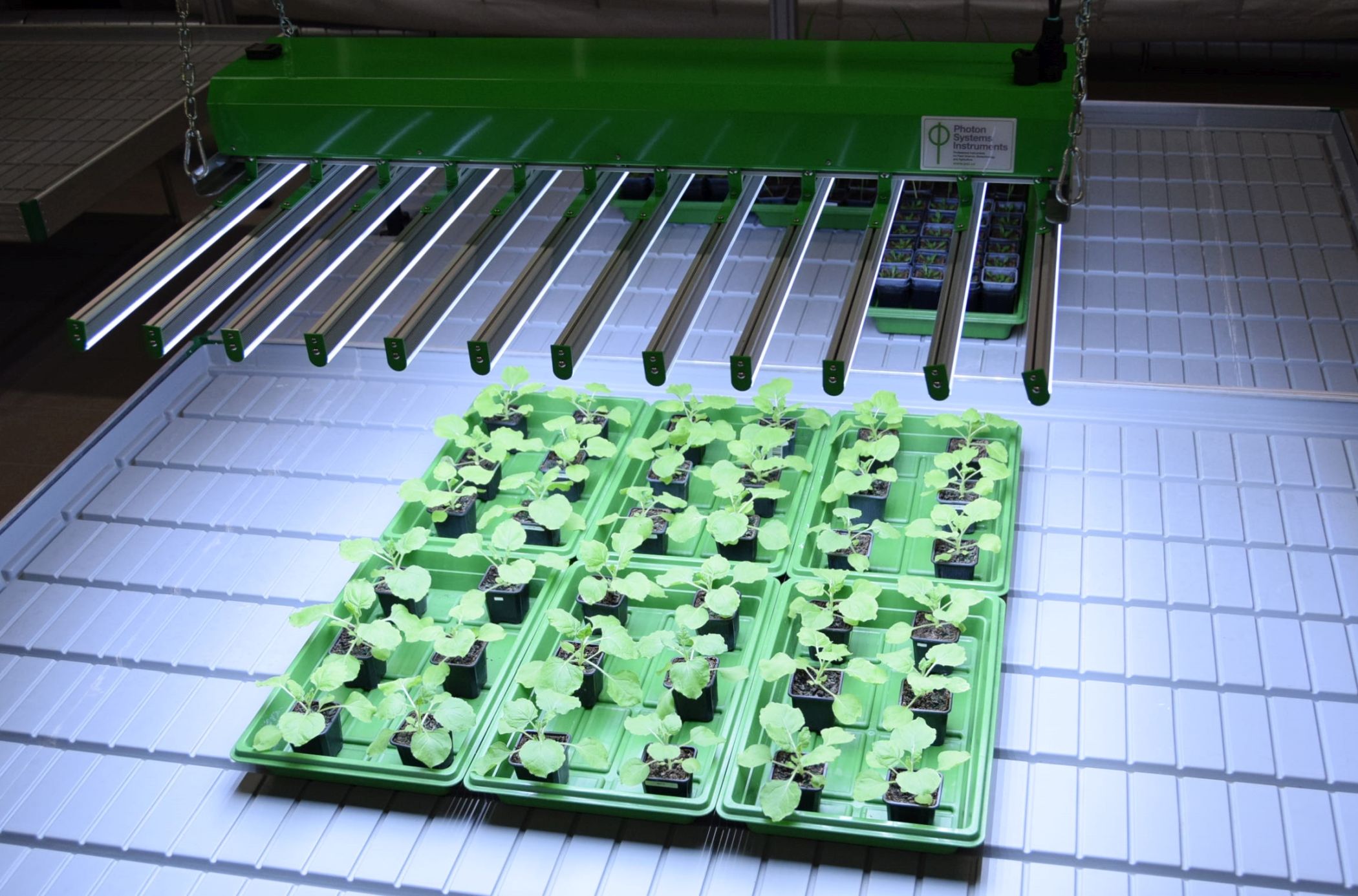

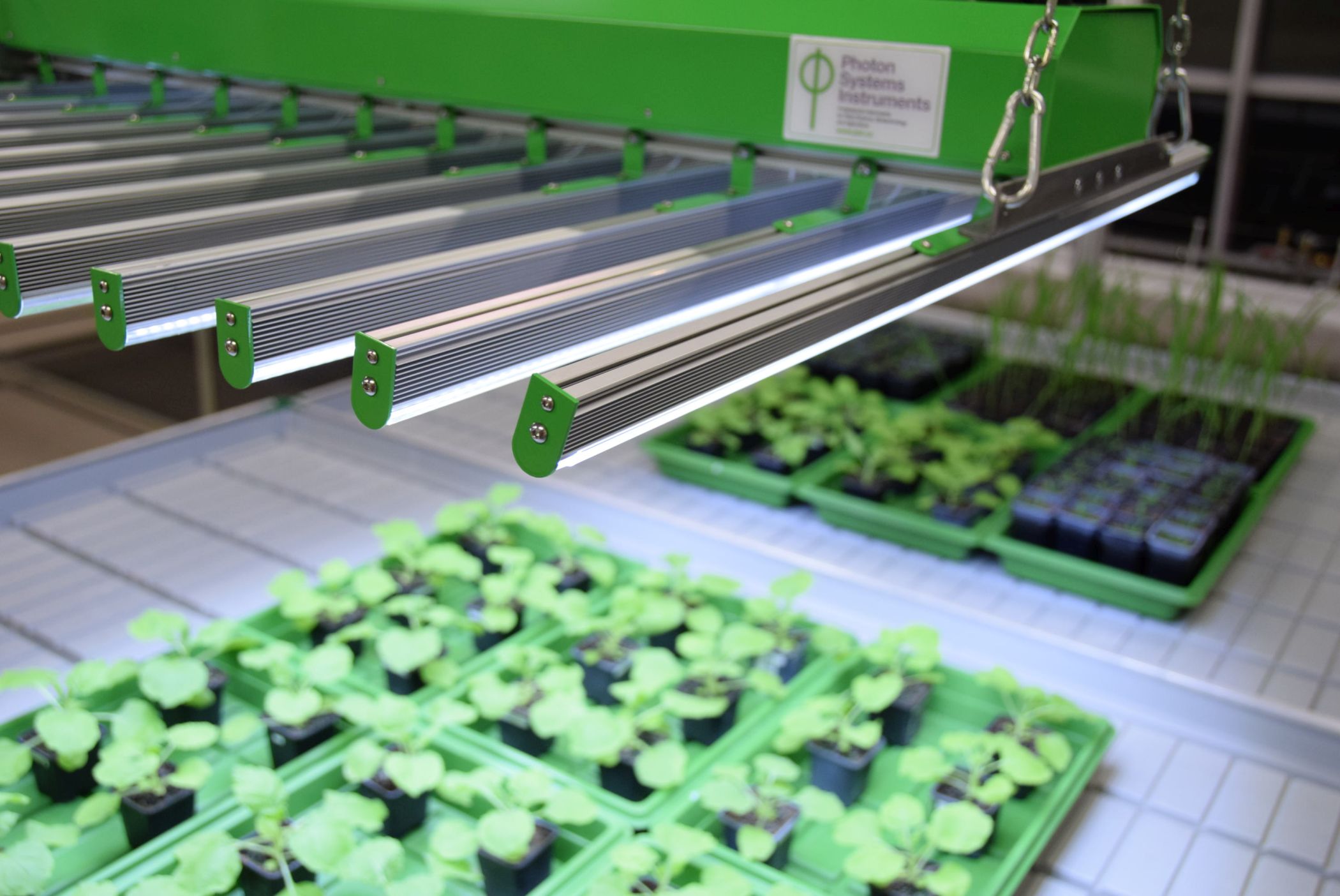

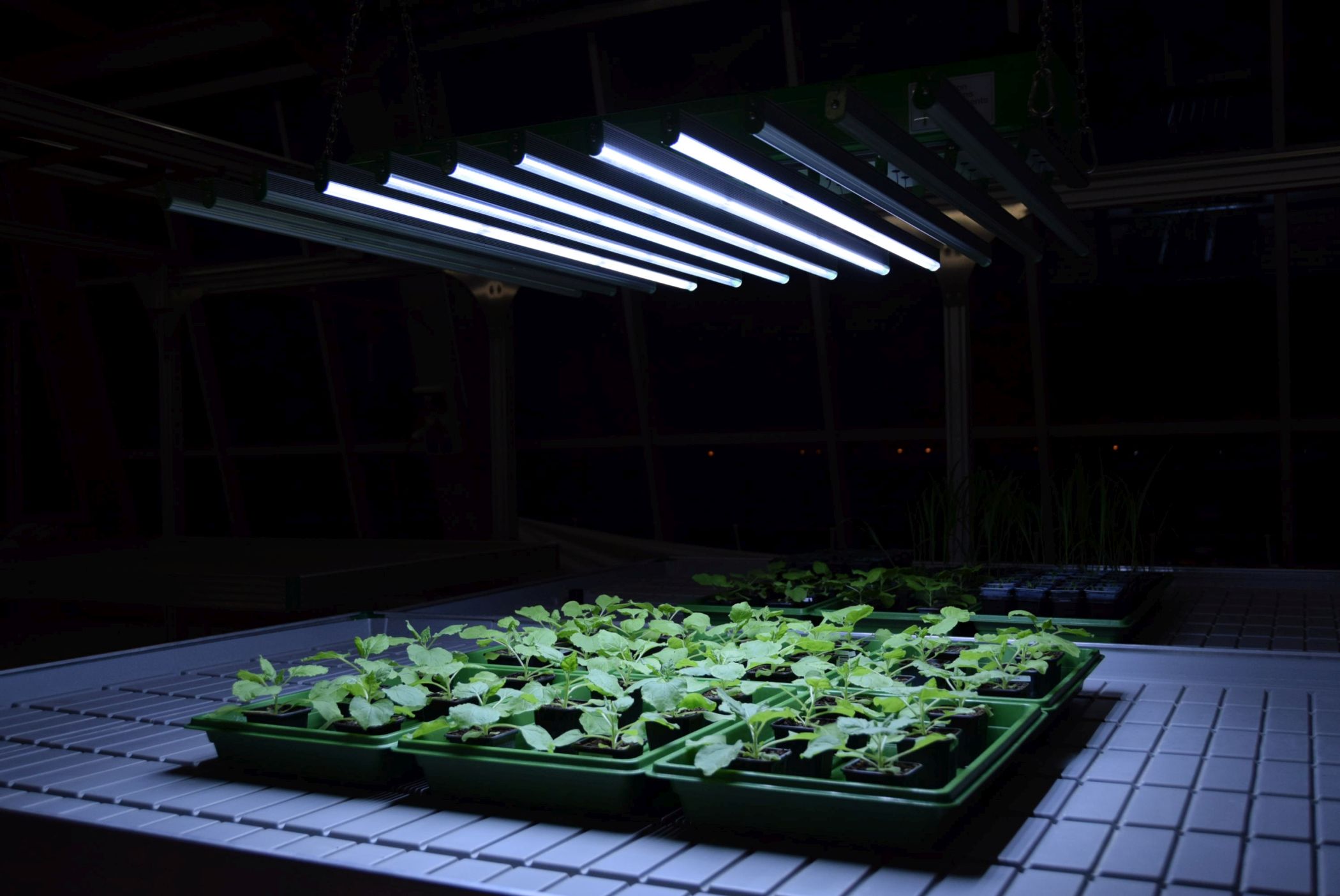

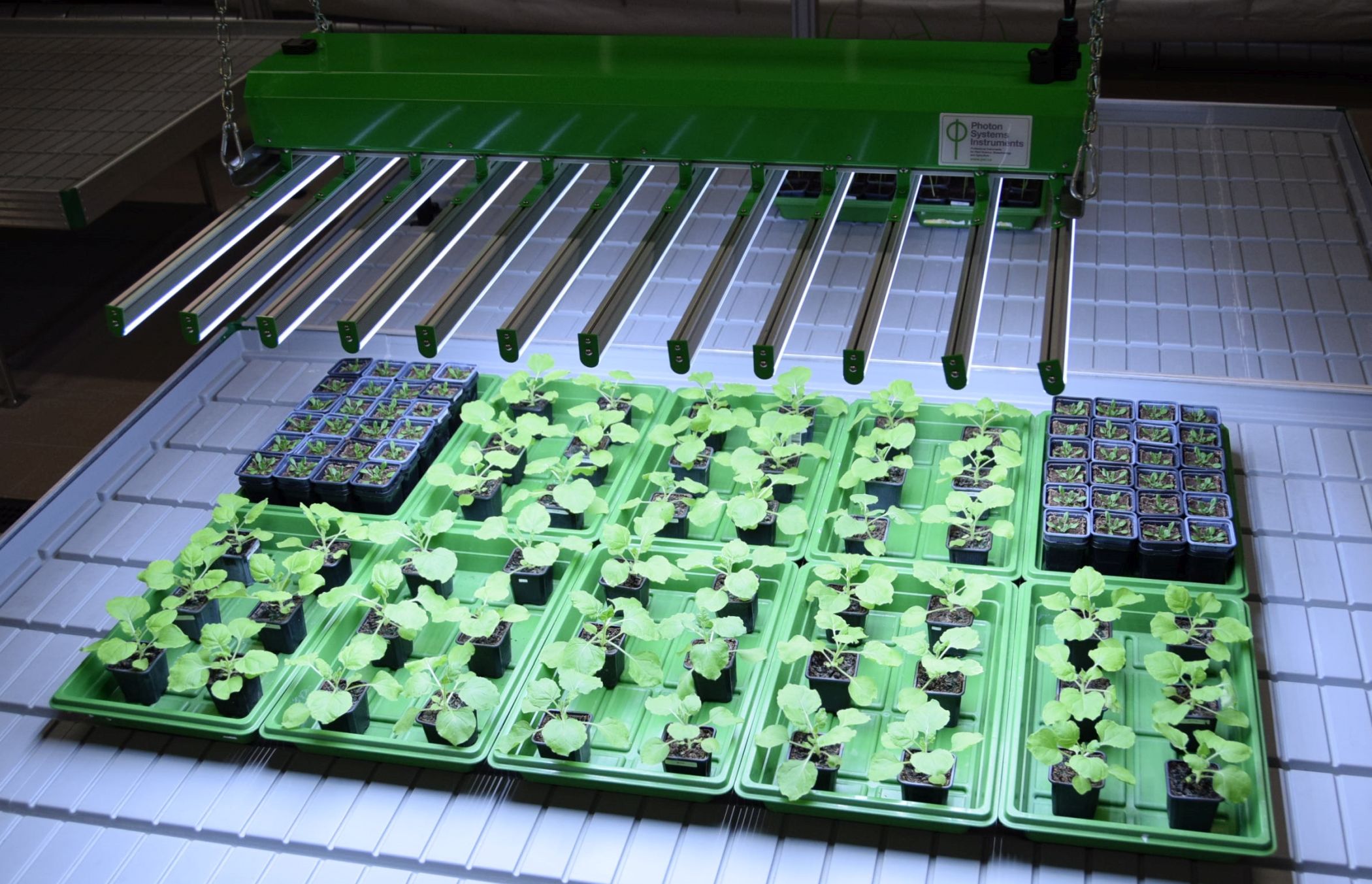

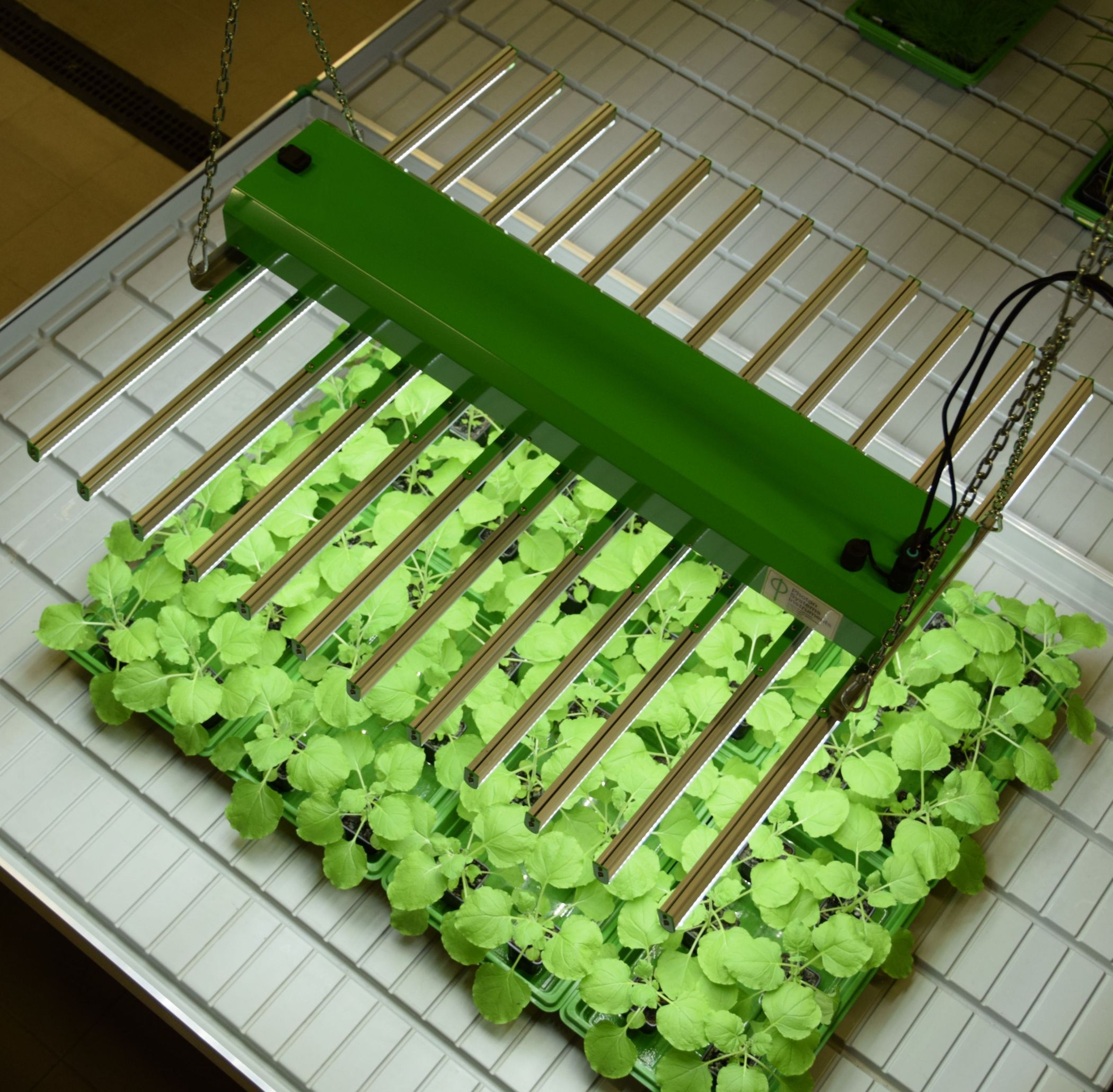

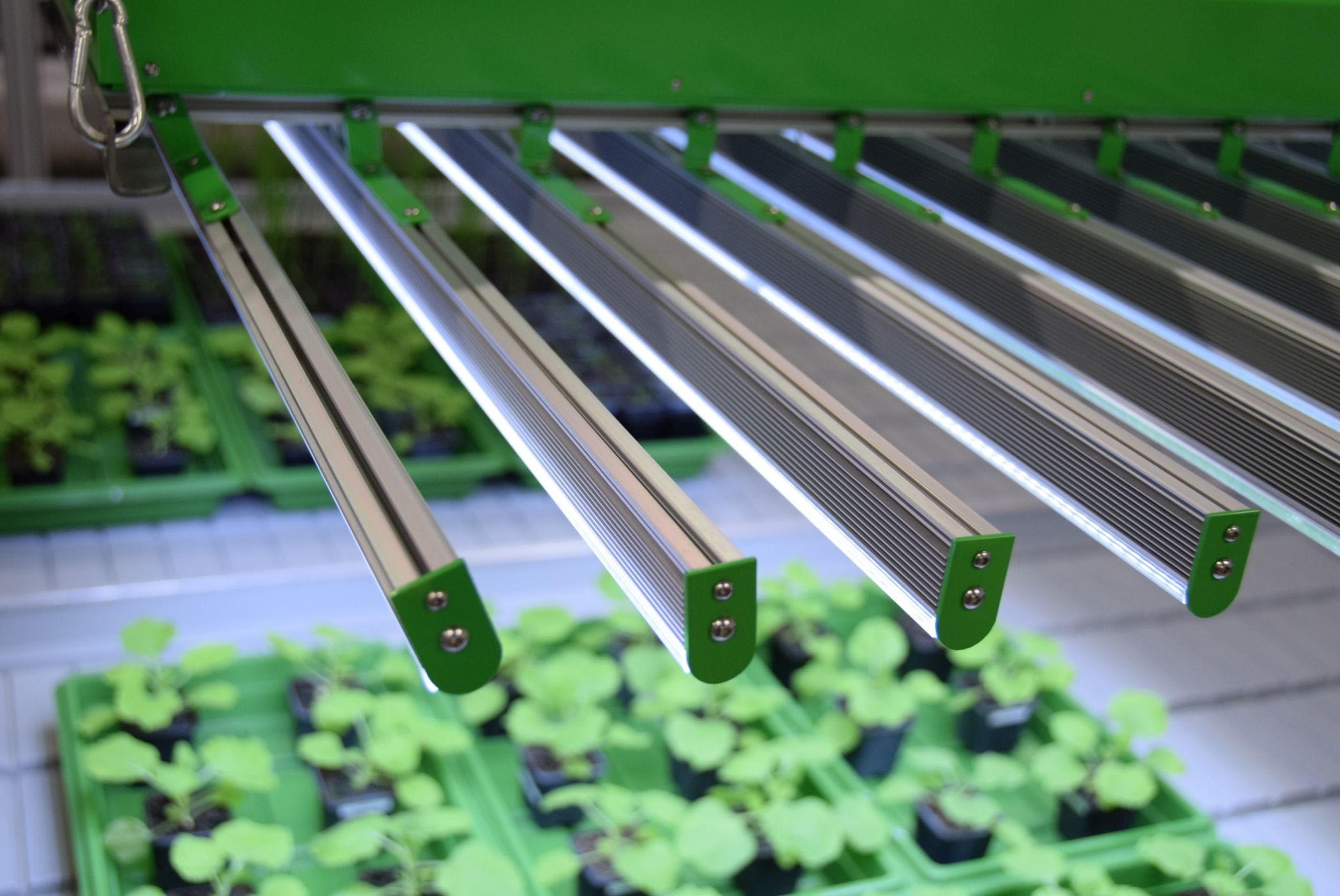

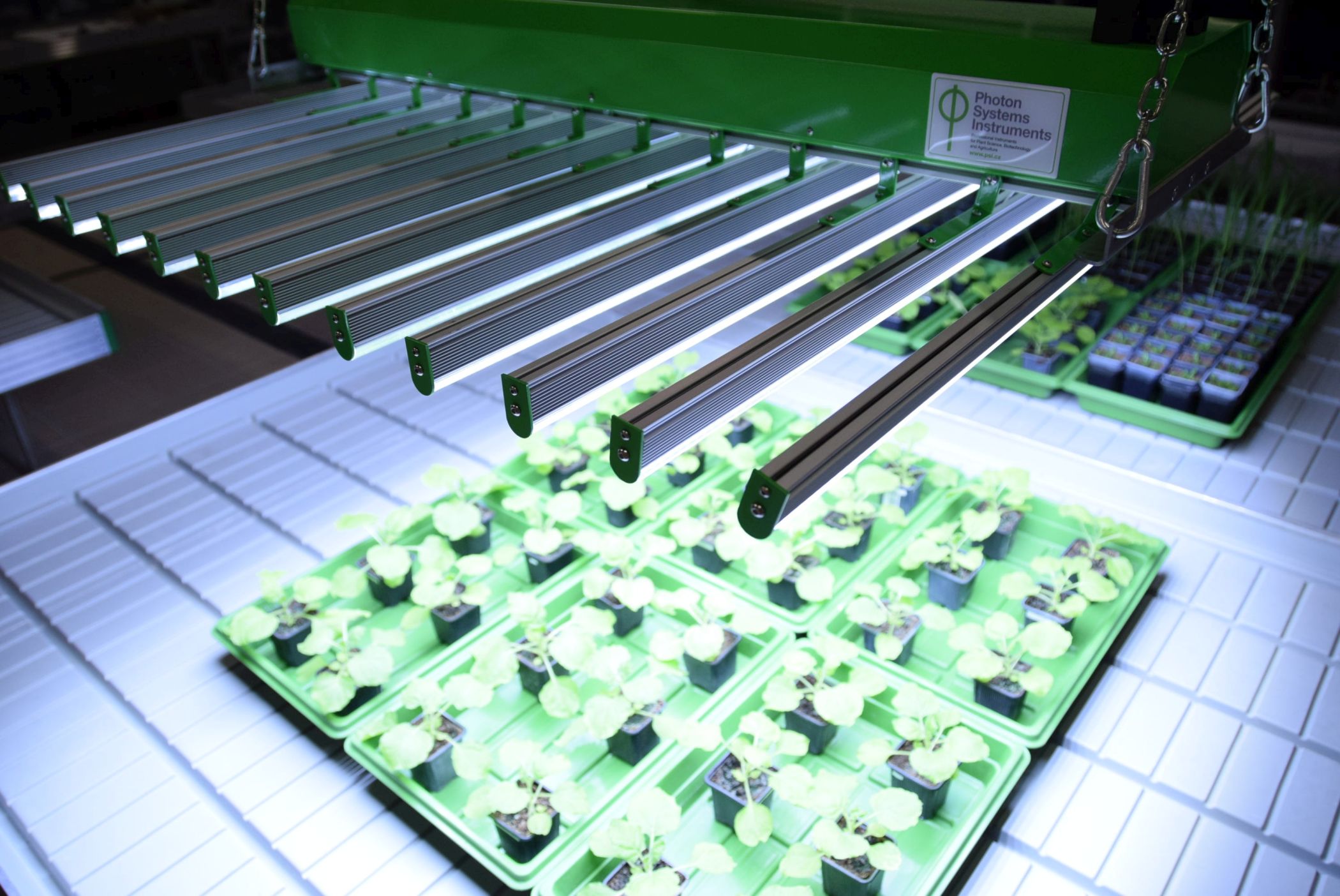

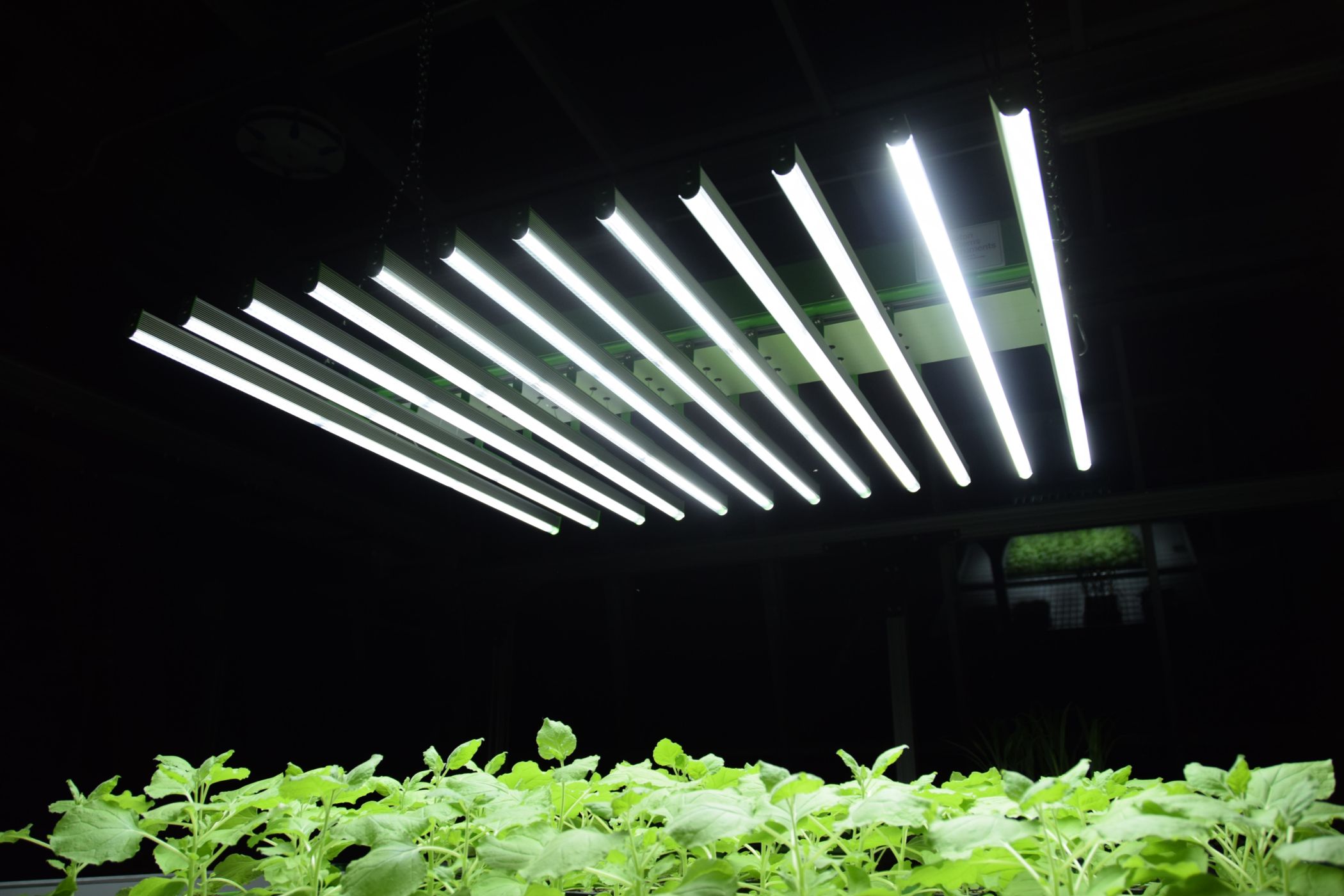

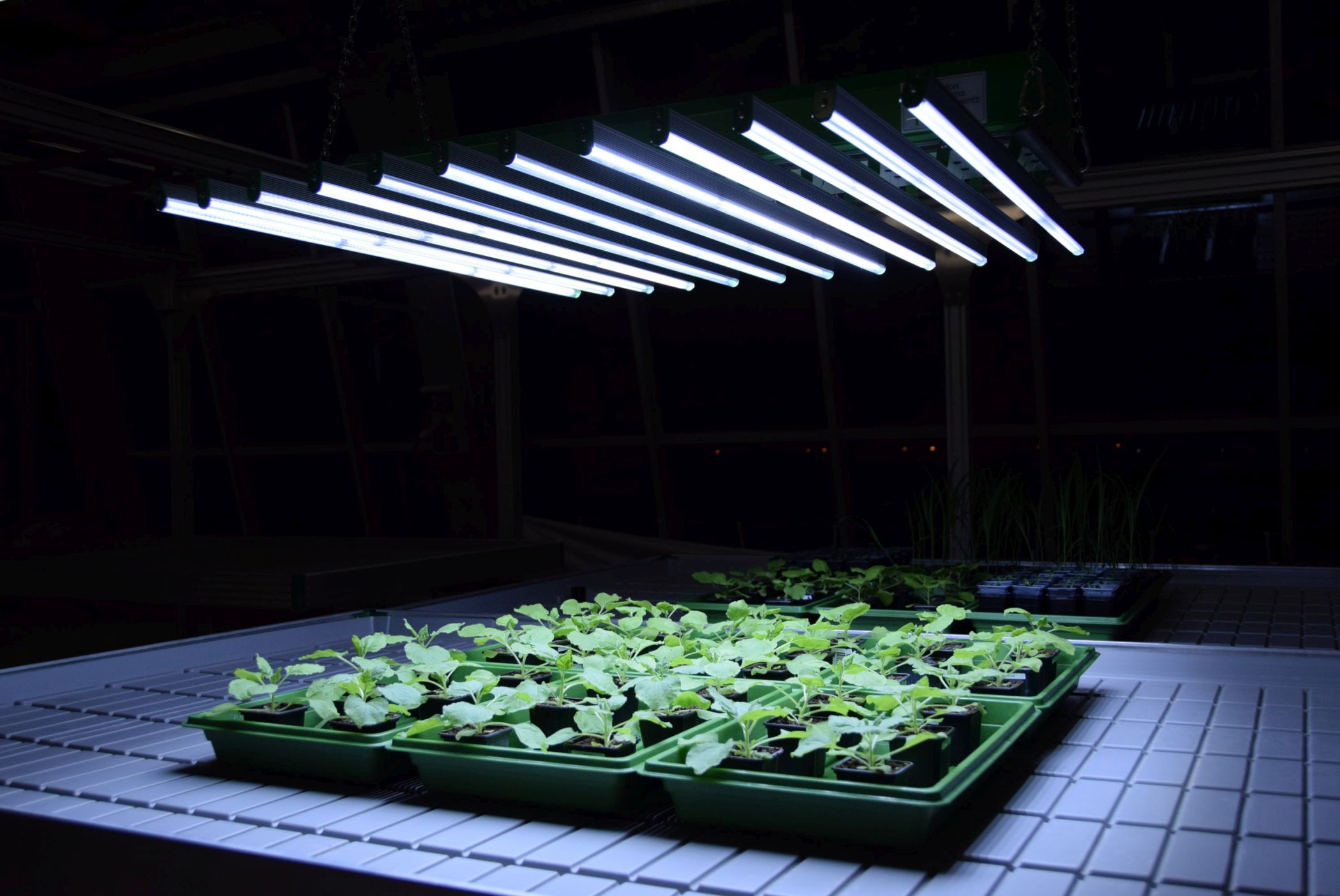

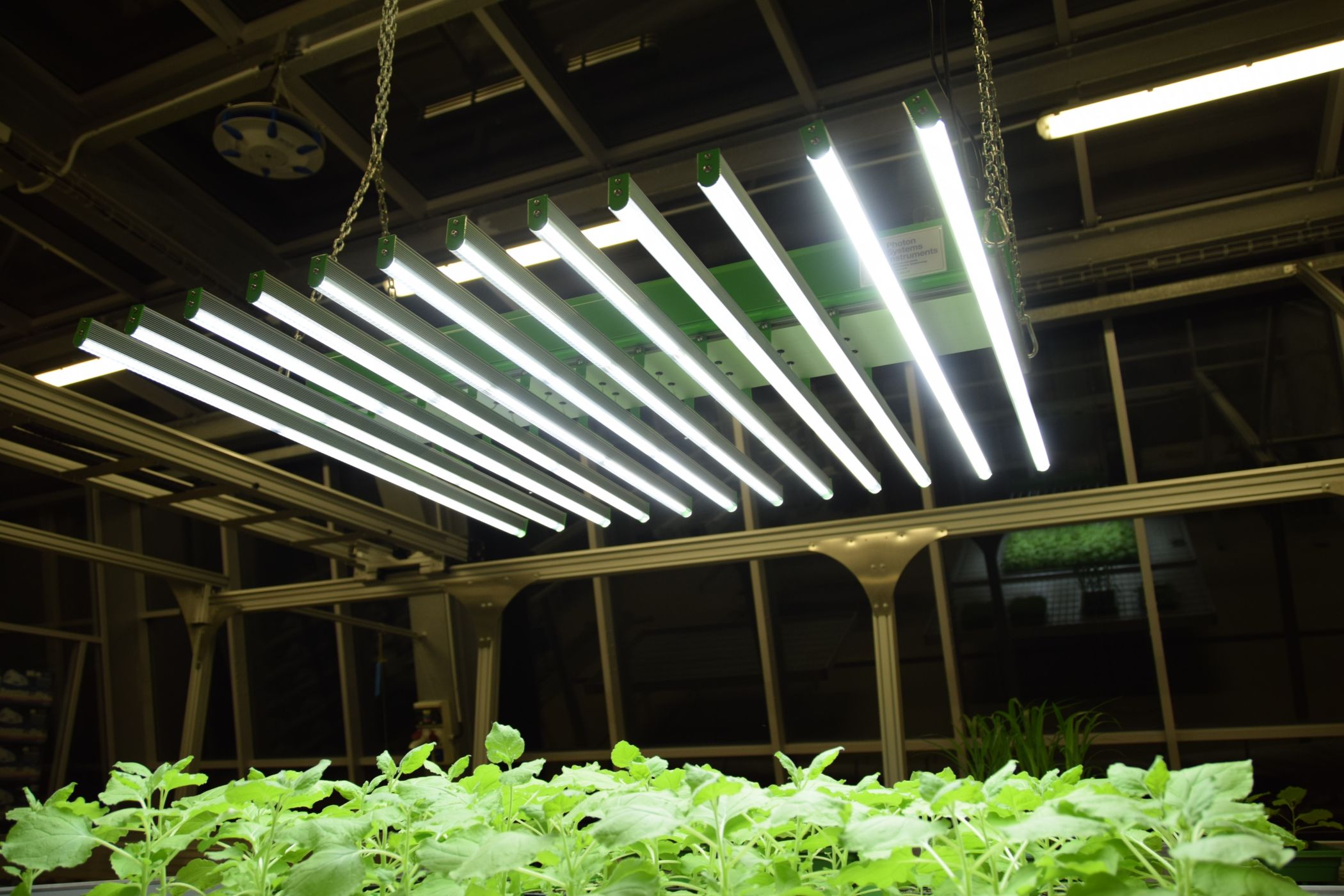

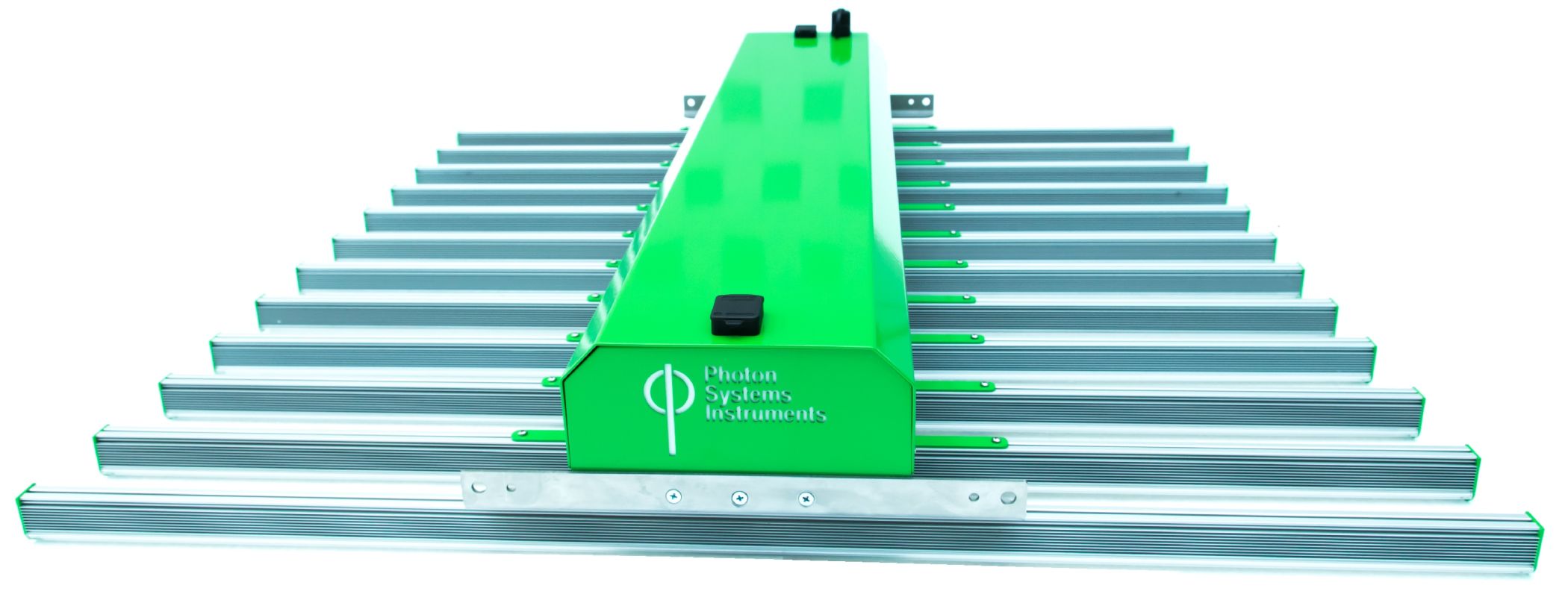

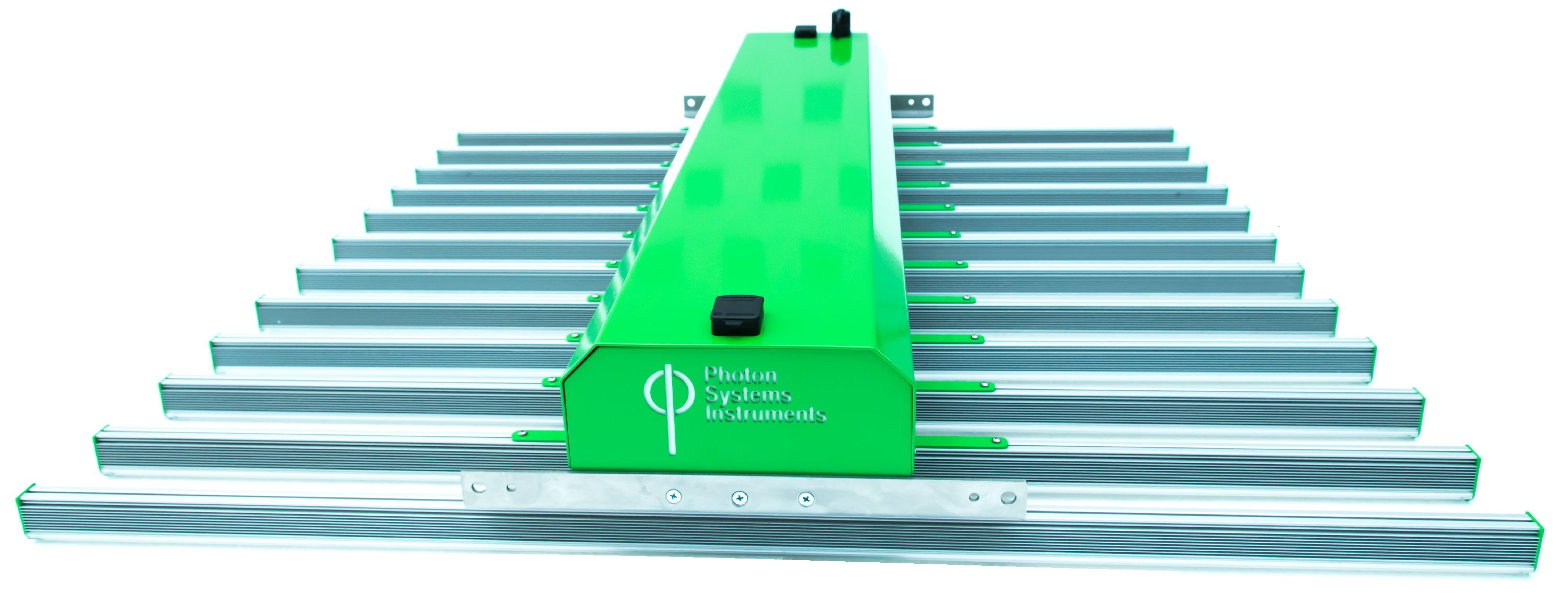

Compact LED Bars are high-intensity, LED-based illumination systems that are primarily intended for plant growing under controlled light conditions.

Compact LED Bars can be accurately controlled by the PSI Light Controller LC 200 (hardware stand-alone solution) or by the PSI Light Studio 485 software (Windows 7 or higher compatible). Both these tools enable writing of user-defined protocols, in which light mode, intensity (5-100% of total output) and timing can be set.

Compact LED Bars may also be cascaded. In that case, more advanced solutions for their control may be offered – multiple modules to be controlled from one or more steering units.

Key Features

  • High-performance LED light source
  • Compact design
  • Controllable / dimmable
  • Passive cooling


  • Adjustable width of homogeneously illuminated area (two modes)
  • Easy installation
  • IP65 rating

Compact LED Bars

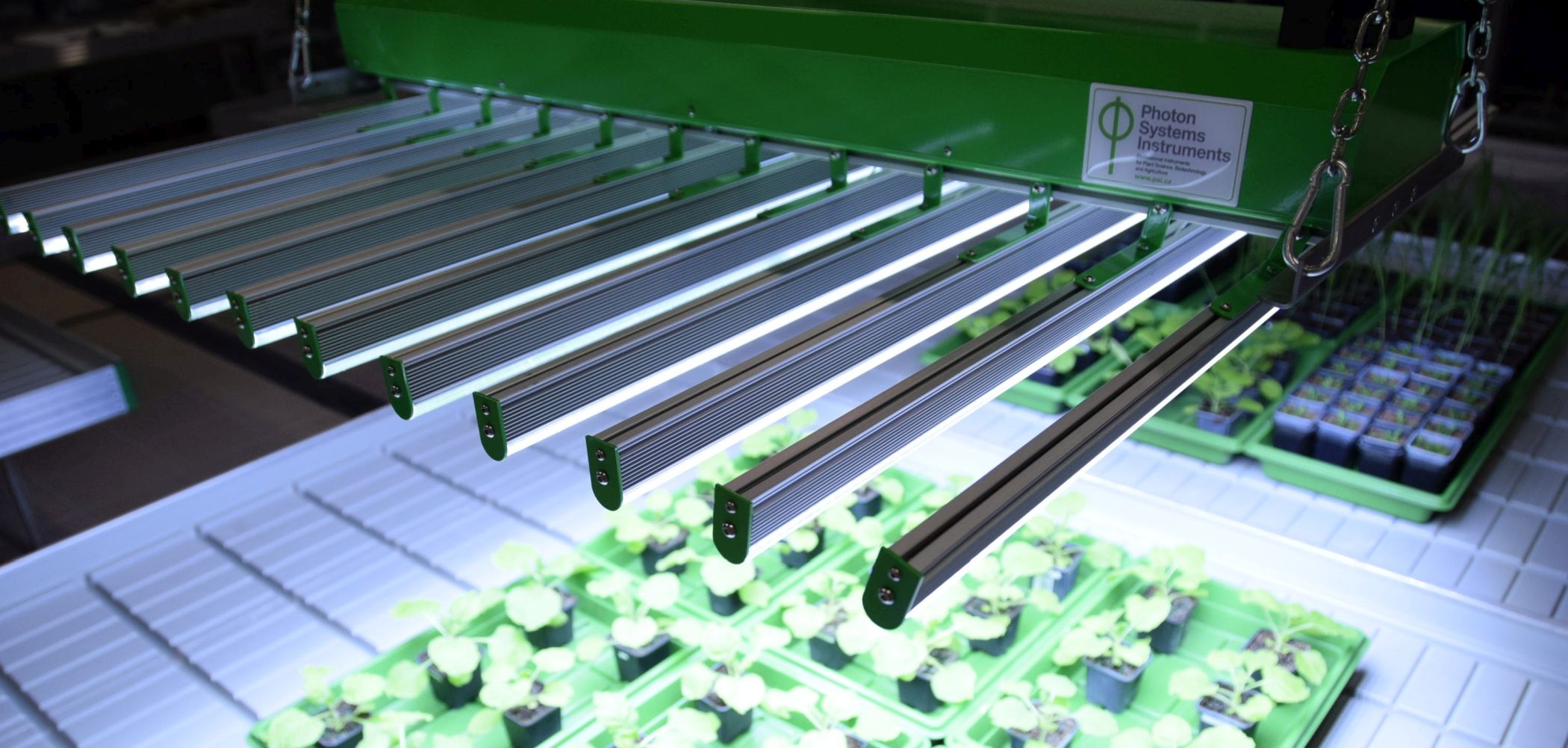

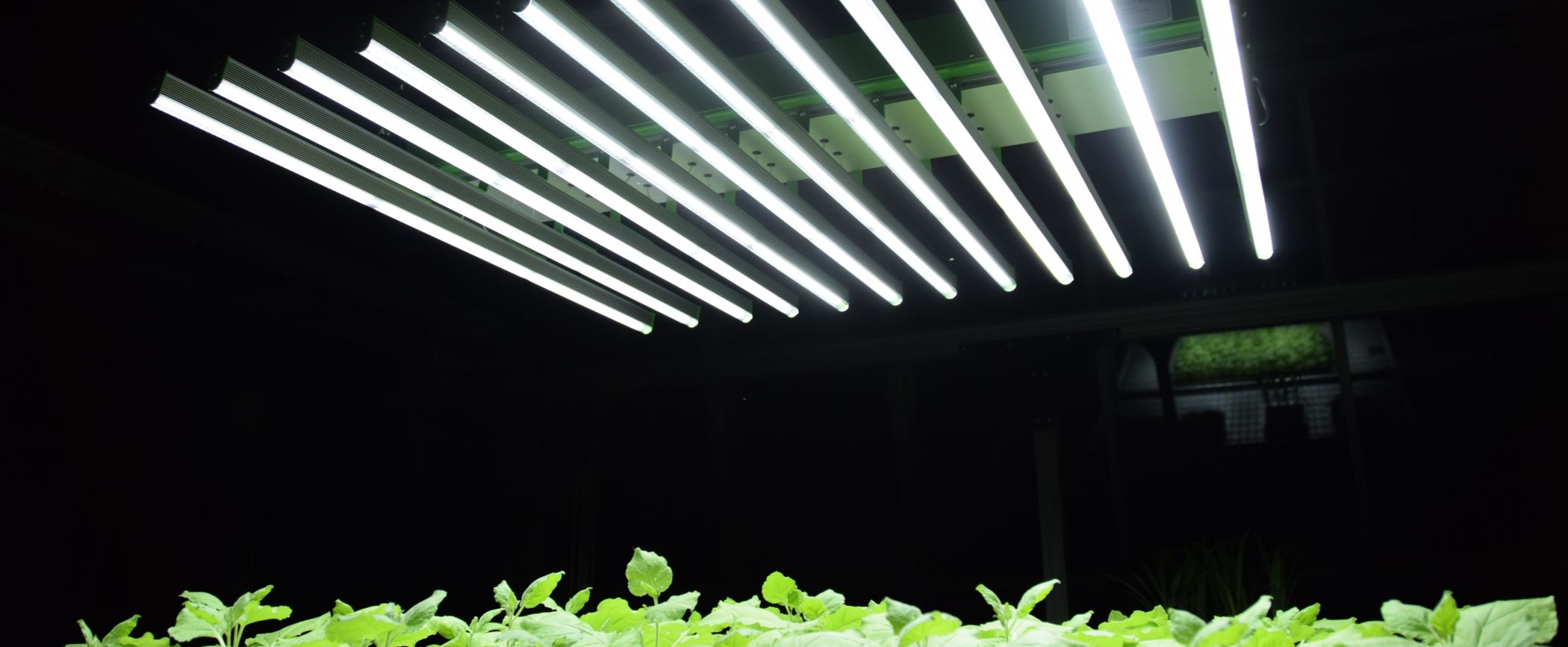

Compact LED Bars provide high-intensity, LED-based illumination primarily intended for plant growing under controlled light conditions. Intensity of illumination can be continuously controlled from 5 to 100 % of total output. The LED Bars can be controlled accurately by PSI’s Light Controller LC200 hardware or by PSI’s Light Studio 485 software . Both enable users to write protocols, in which light mode, intensity and timing can be set.is high-intensity.

Applications

  • Greenhouses
  • Custom Research Facilities
  • Indoor Cultivation
  • Growth Chambers

Key Features

  • High-performance LED light source
  • Compact design
  • Controllable / dimmable
  • Passive cooling
  • Adjustable width of homogeneously illuminated area (two modes)
  • Easy installation
  • IP65 rating

Compact LED Bars may grouped, with more advanced solutions for their control offered, including multiple units being regulated from one or more control units.

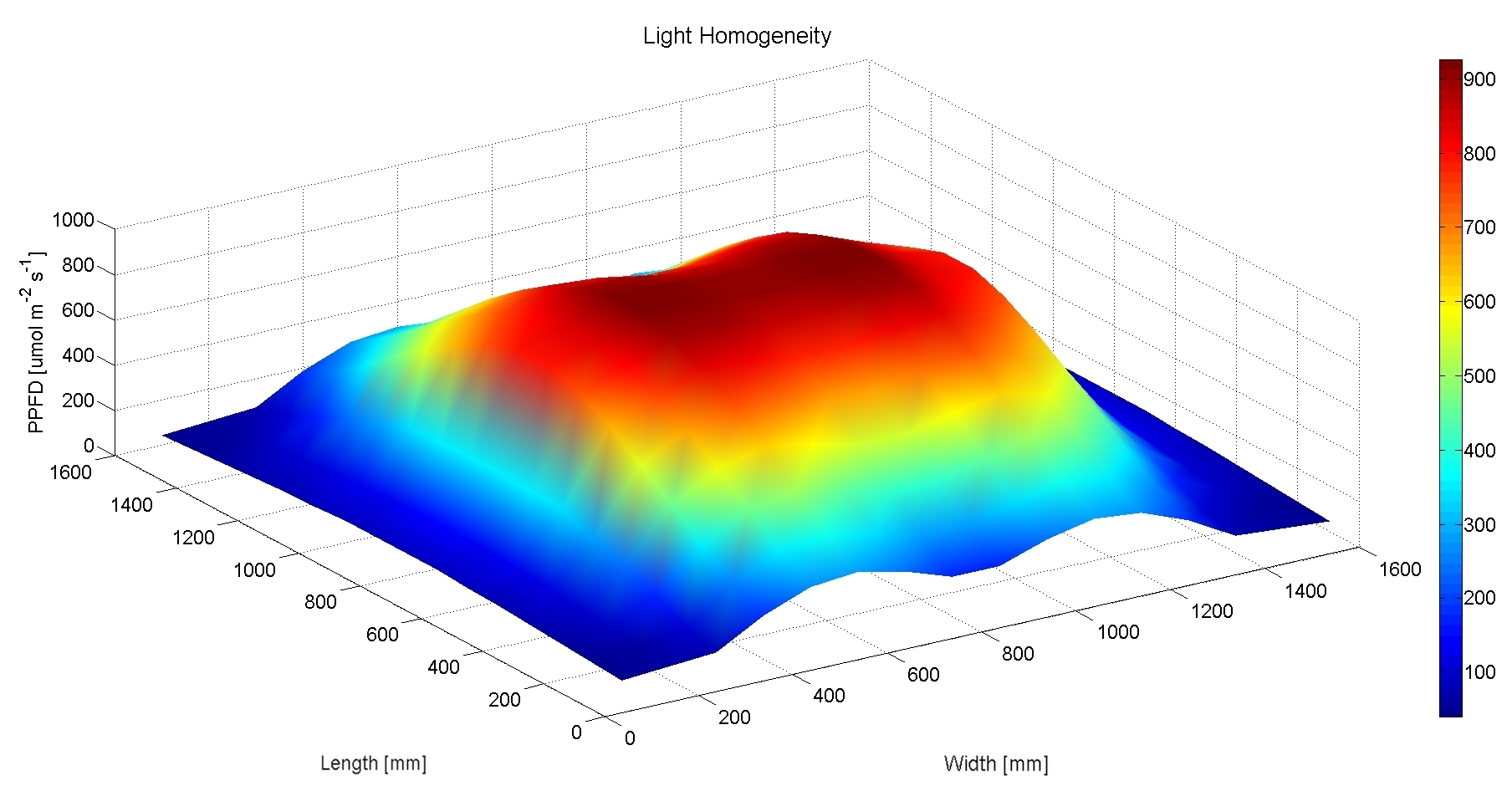

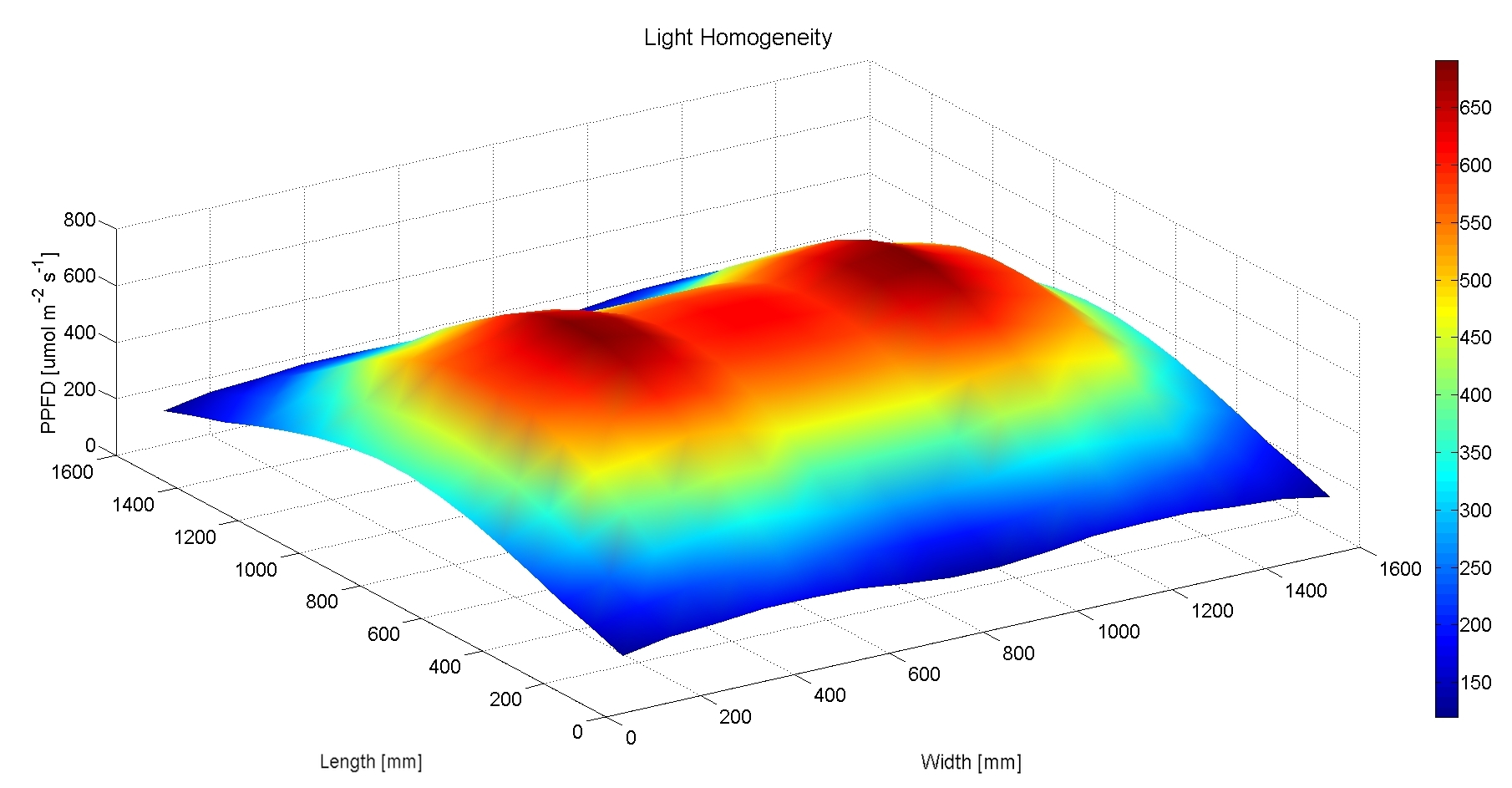

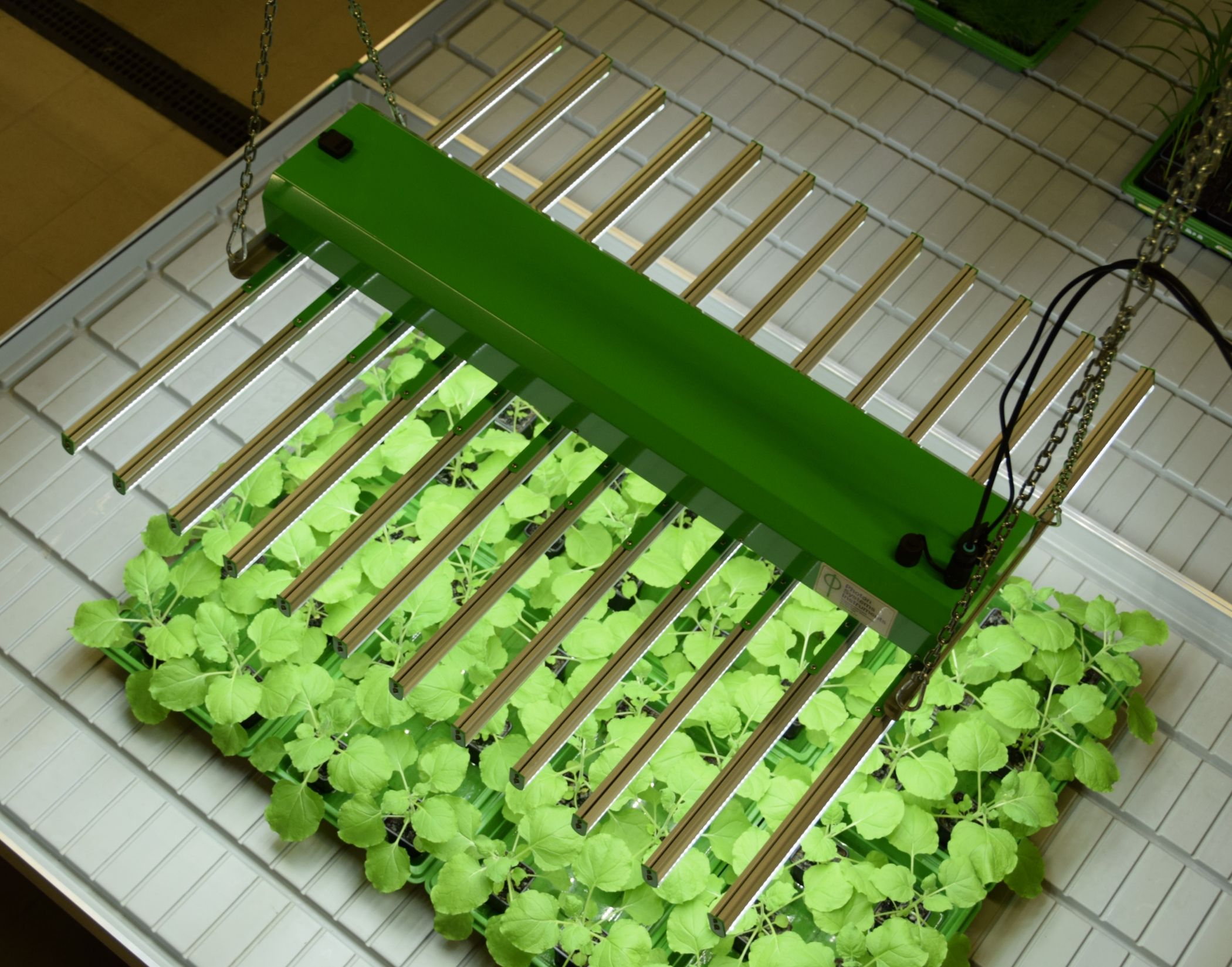

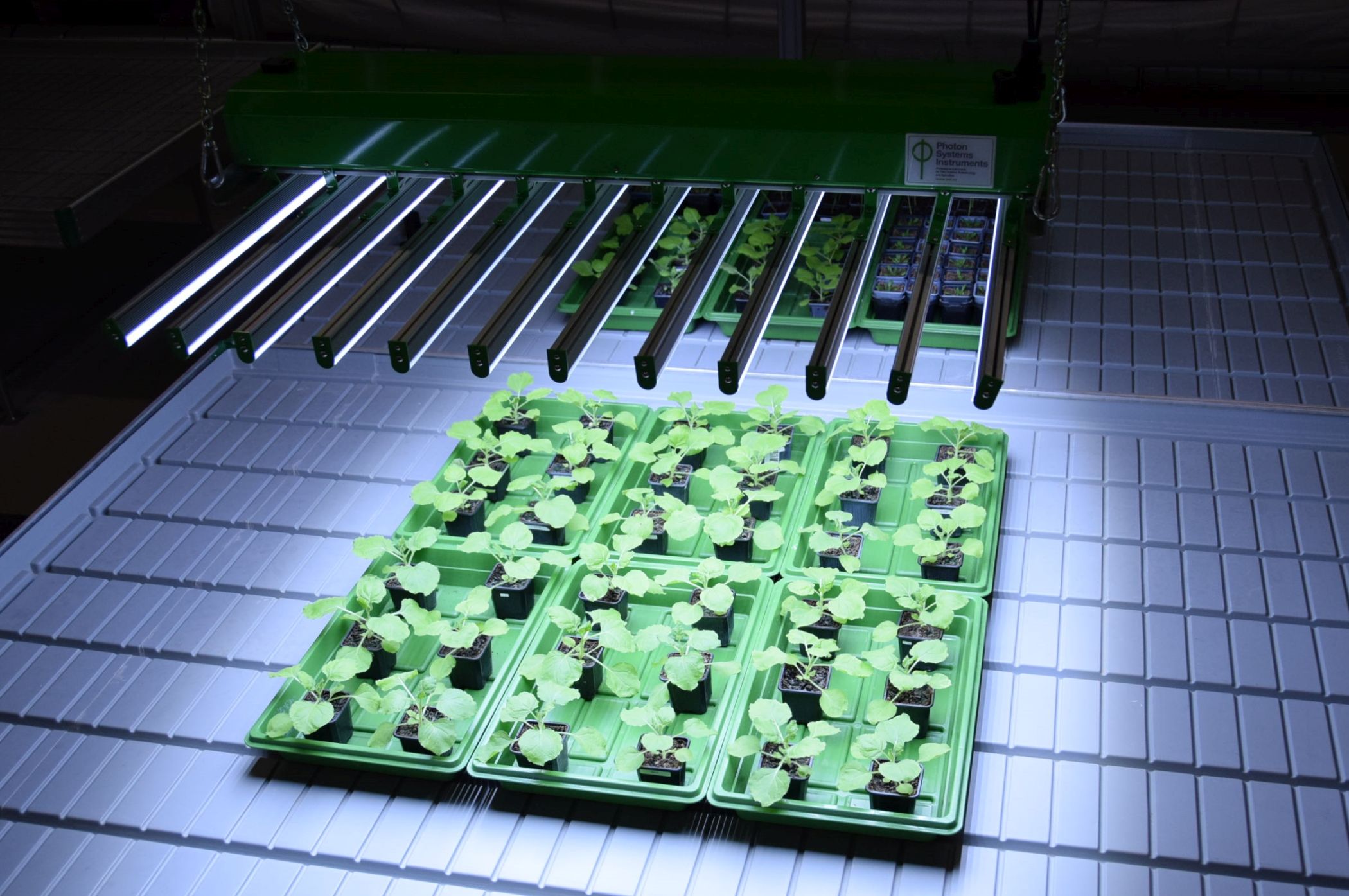

PSI’s Compact LED Bars may be set in two configurations: Standard and Wide The standard configuration results in higher homogeneous incident irradiance over a smaller area, and the wide configuration results in lower homogeneous irradiance over a wider area.




Specifications - Compact LED Bars


  • Power consumption: 5 - 720 W
  • Input voltage: 90 - 305 VAC
  • Frequency: 50/60 Hz
  • PPFD: max. 920 µmol.m-2.s-1 (at the distance of 50 cm)

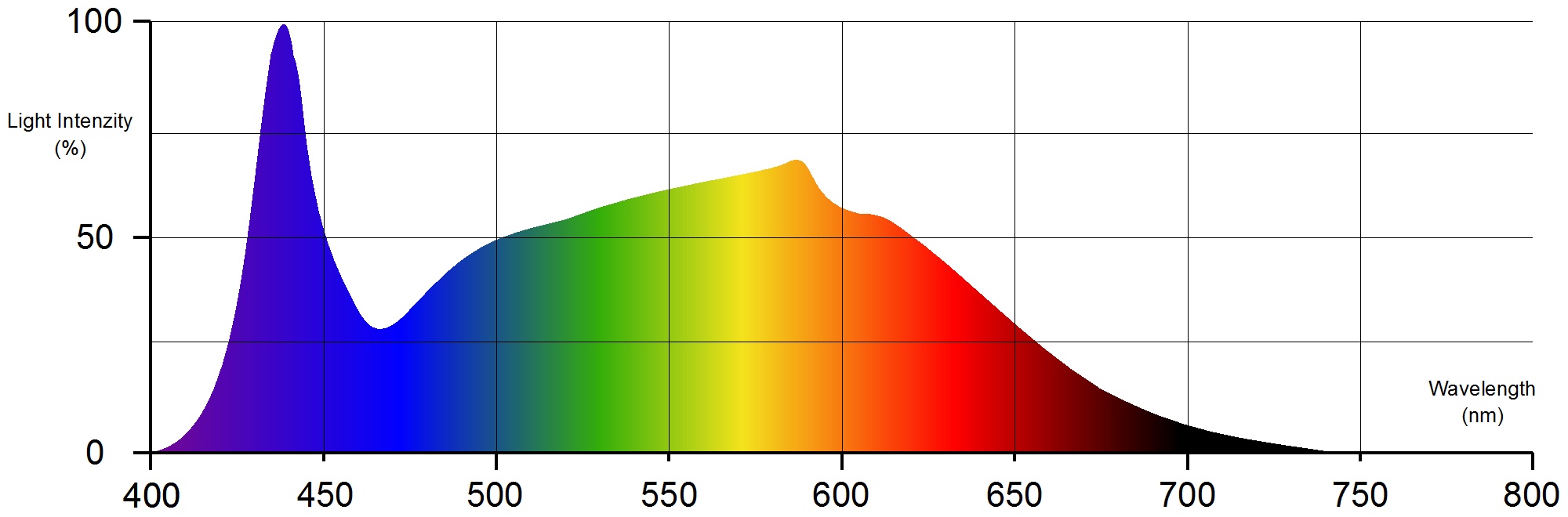

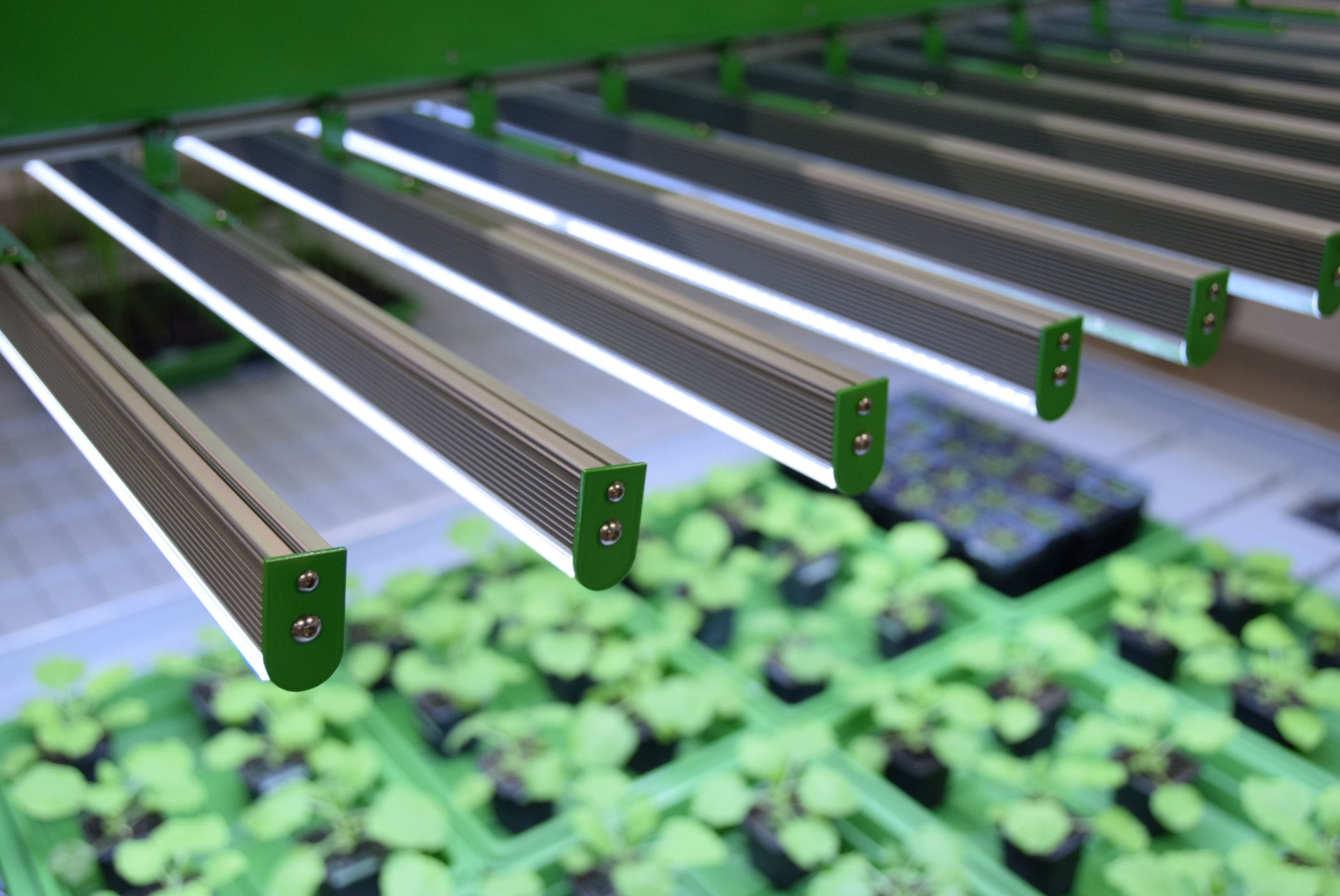

  • Light source: 12 x 126 pcs. LED 5,700 K cool white, 50,000 hours life to L70
  • Dimmable (Current control): 5 – 100 %
  • Cooling: passive

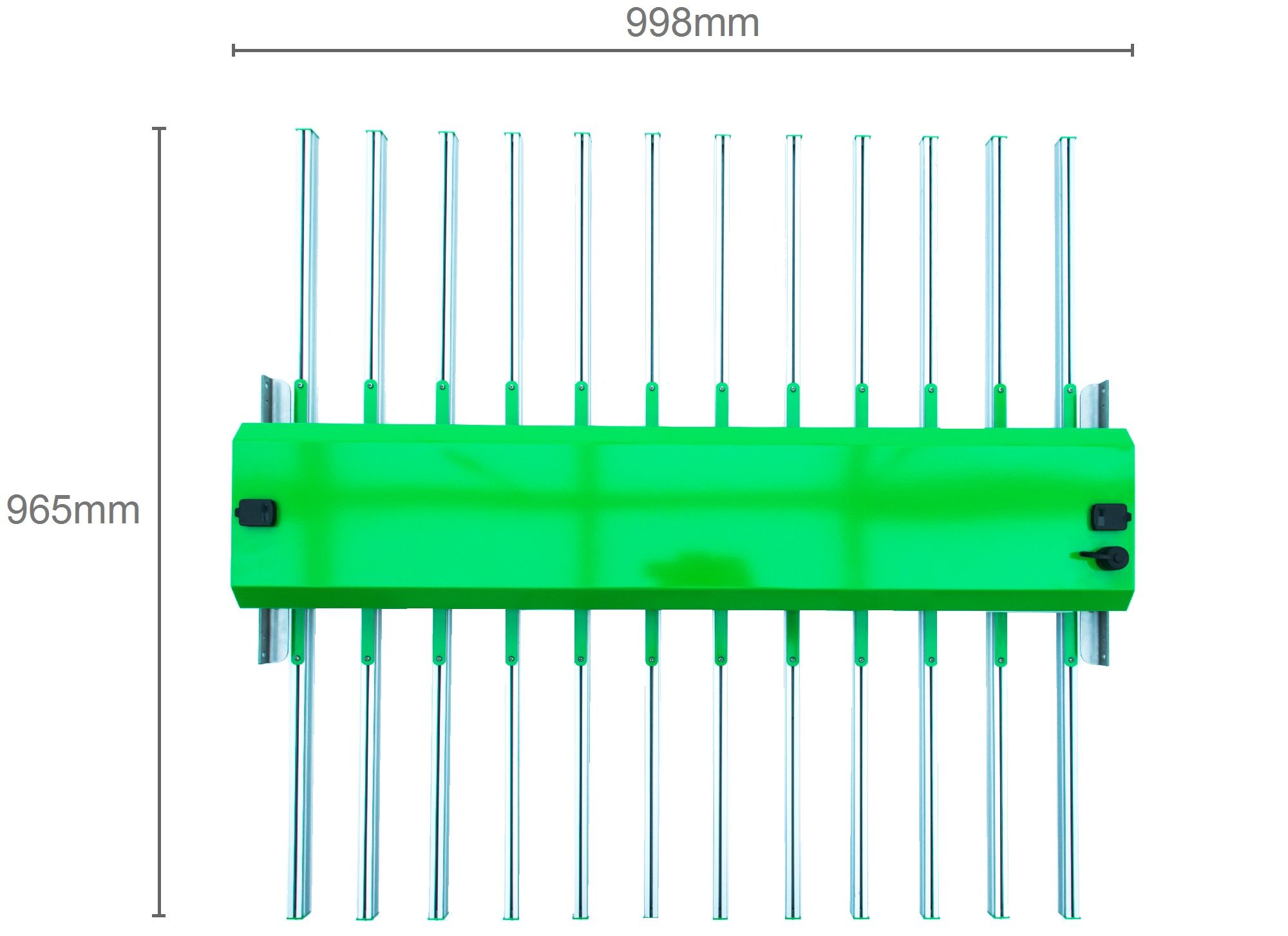

  • Dimension: 998 (W) x 160 (H) x 965 (L) mm
  • Weight: 24 kg

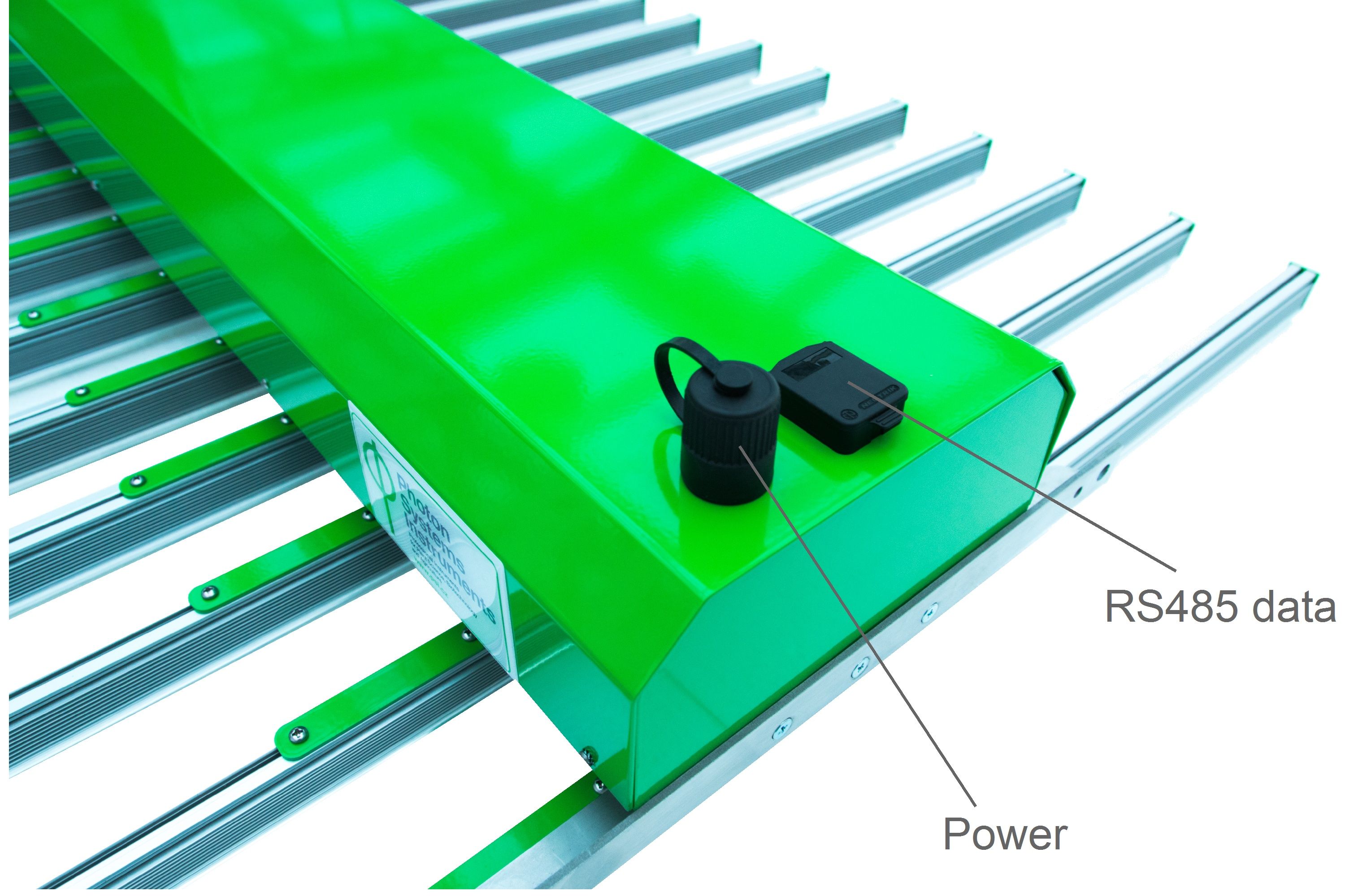

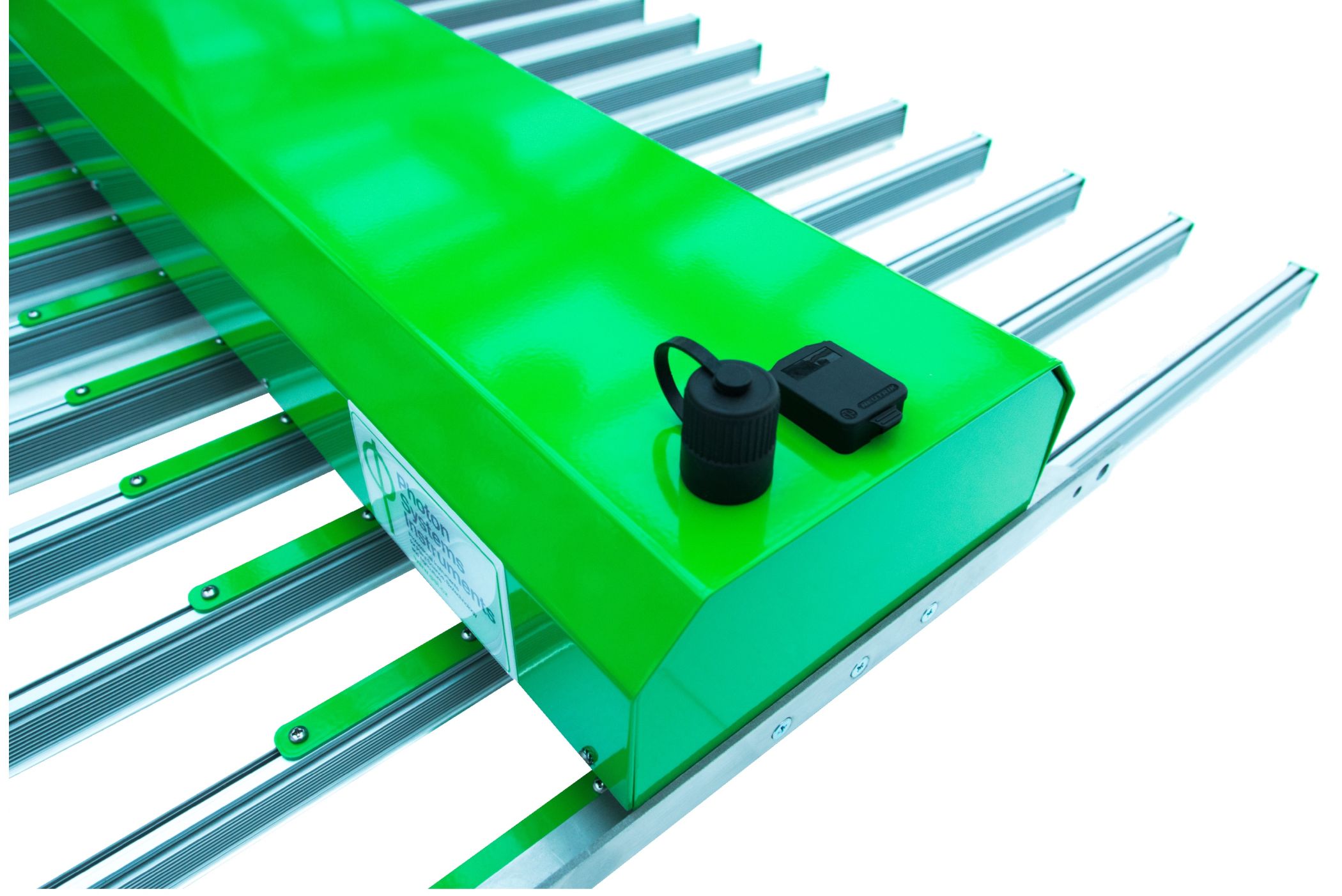

  • Ports: 1 x input power, 2 x RS485 data (in/out)
  • Operating temperature: from -20 to +40°C (environment)

Accessories

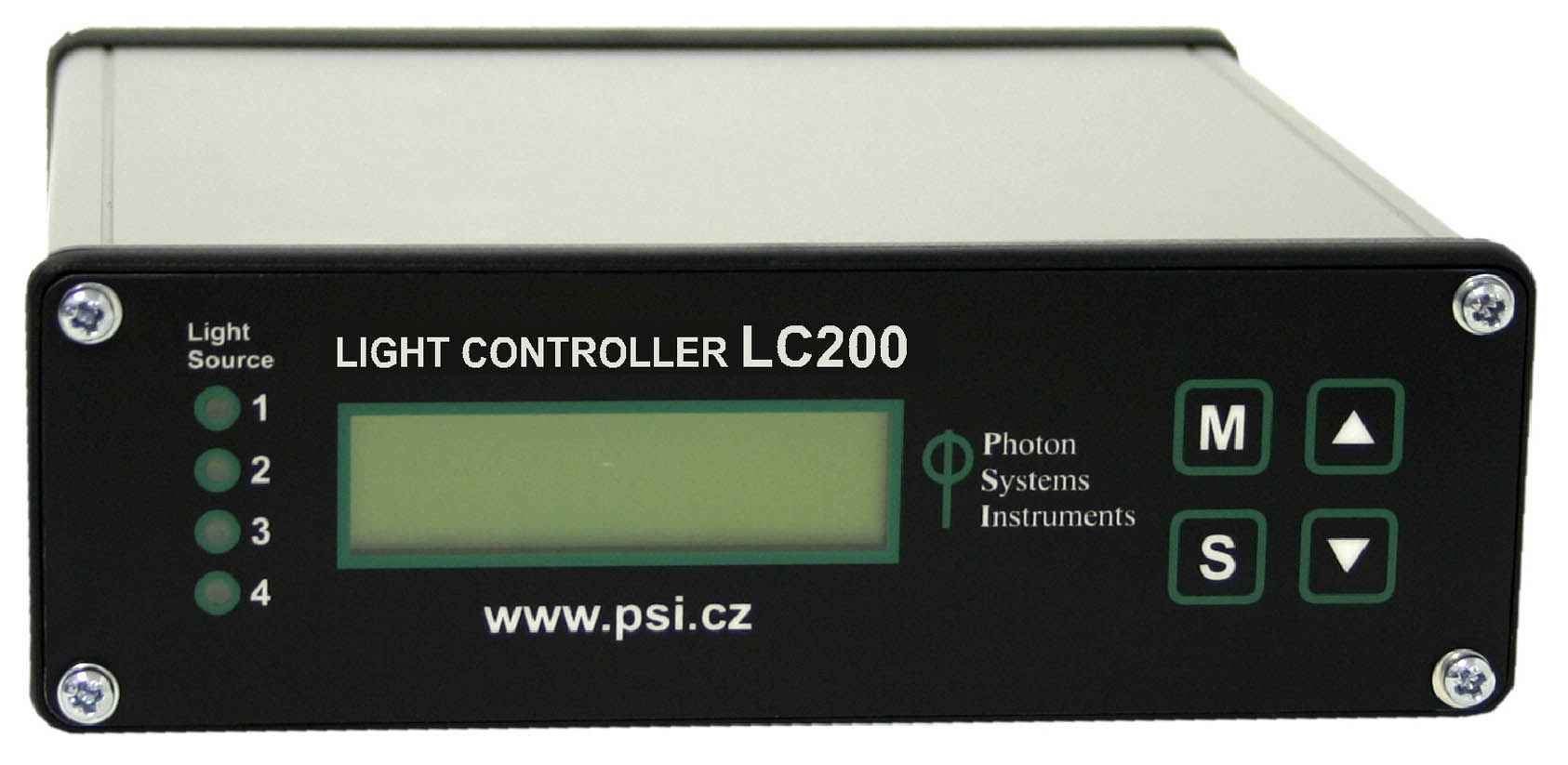

Light Controller LC 200


  • User-friendly, four-button operation
  • Precise control over the light mode, intensity and timing (seconds to hours)
  • Light modulation according to a predefined function (continuous, pulse, sine, triangle)
  • User-defined custom protocol with 224 defined functions of a light phase (optional)
  • Daylight protocol for cloudy sky simulation (optional)
  • No PC needed

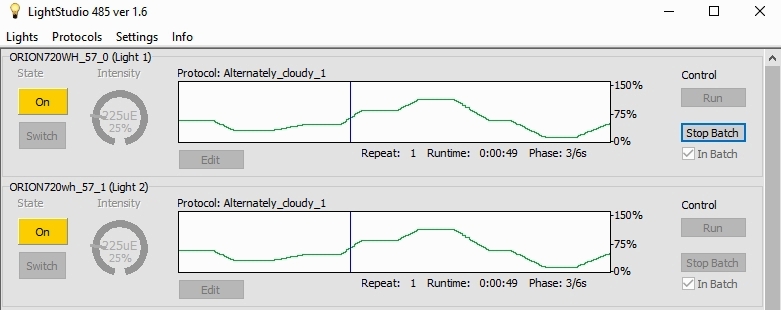

Light Studio 485 Software


  • User-friendly GUI
  • Precise control over light intensity and timing (from seconds to hours)
  • Light modulation is fully programmable, built from user-defined segments (continuous light and ramp)
  • Calibration profiles for individual light channels
  • Possibility to start protocols simultaneously and/or with delay

Pricing

Compact LED Bars ( stand-alone system with standard powering option) 2,690 €
Light Controller LC 200 – control box (hardware solution) 990 €
LightStudio – controlling software (PC not included) 990 €

For more information please contact us on info@psi.cz
